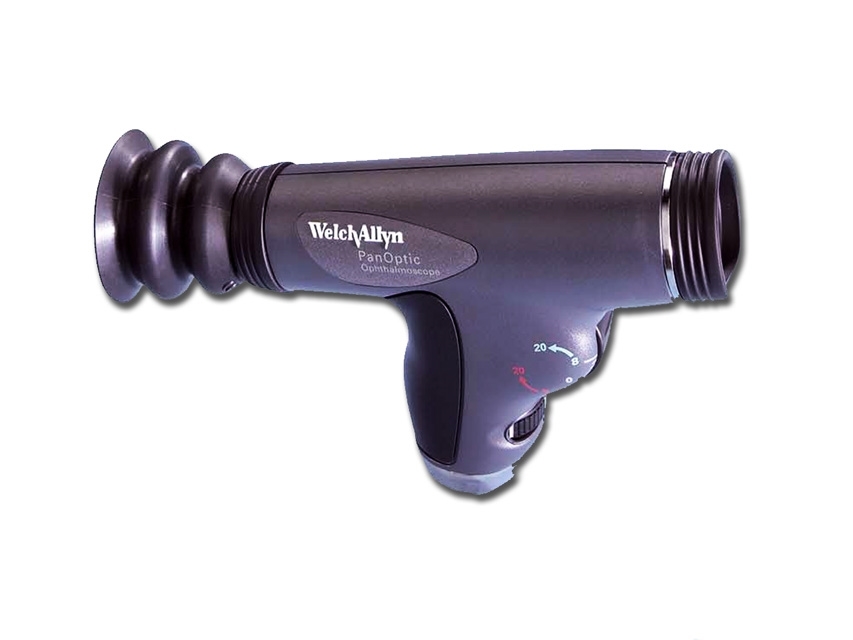

WELCH ALLYN PANOPTIC OPHTHALMOSCOPE HEAD - 11810, 1 pc.

Description

PanOptic is a breakthrough concept in ophthalmoscopy. Thanks to an innovative, optical design known as Axial PointSource™ Optics, it will greatly enhance your funduscopic examinations.

- Fast easy entry into small, undilated pupils
- 5 X larger field of view than you see with standard ophthalmoscopes in an undilated eye
- 25° field of view versus the 5° field of view of standard ophthalmoscopes
- A 26% increase in magnification, making it easier to see retinal details
- Greater distance between practitioner and patient means greater comfort for all

Patented Axial PointSource™ Optics:
Makes it easy to enter undilated pupils, and provides a 25° field of view, resulting in a view of the fundus that’s 5 X greater than you see with a standard ophthalmoscope in an undilated eye

Halogen HPX™ Lamp:
Provides whiter, brighter light

Glare Extinguishment System:
Prevents interference from unwanted glare and reflections

Welch Allyn 3.5 V Power Sources:
Compatible with any standard 3.5 V power source including: desk charger handles, convertible battery handles, wall transformers and the Lithium Ion Power Handle

Patient Eyecup:
Establishes and maintains proper viewing distance, provides image stability, serves as a pivoting point for panning around the retina, helps with orientation, and screens out ambient light. The eyecup is cleanable and reusable

PanOptic Soft Grip:
Ergonomically designed for maximum comfort, balance, and access to controls.

Aperture Dial:
Allows you to select micro, small, and large spot sizes. Also includes red-free filter and slit aperture, half-moon aperture for corneal exams

Dynamic Focusing Wheel:
Adjusts the focus in a continuous, smooth action for more precise control and optimum view. Available focusing range is -20 to +20 diopters
