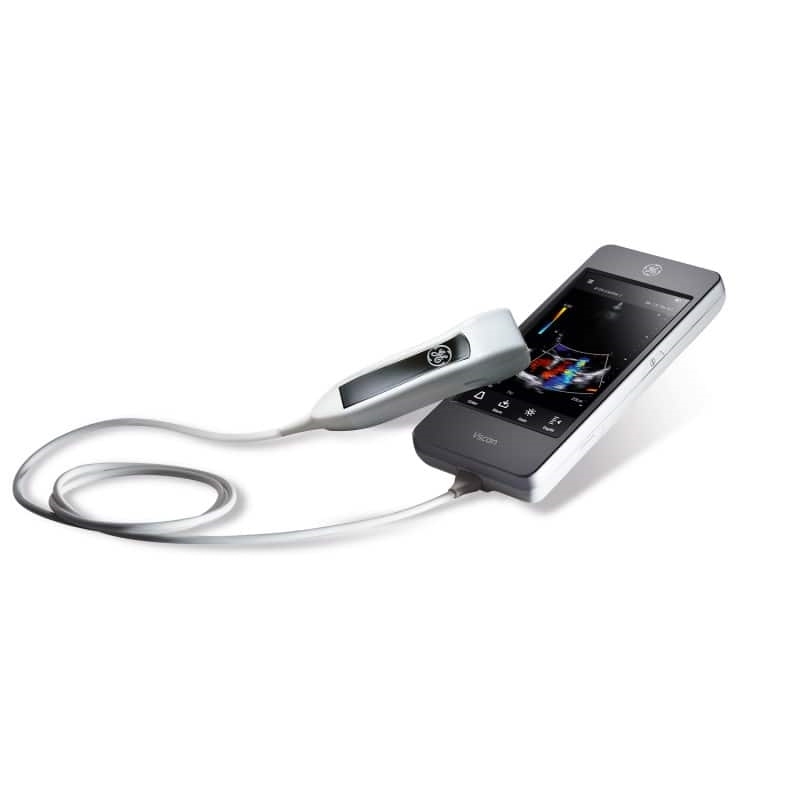

Vscan Extend™ Ultrasound System with sector transducer

Description

The pocket-sized Vscan Extend™ ultrasound system is specifically designed for mobile and rapid use. With a variety of imaging modes, including B-mode, Lung M-mode and a colour Doppler, the unit is ideal for measuring and visualizing anatomical structures and fluids. The device is particularly handy and can be started from standby mode within 10 seconds, making it ideal for examination directly at the accident site or bedside. The system is DICOM-compatible and also allows data transfer via USB or Wi-Fi.

It has a user-friendly interface and intuitive touch screen. Especially during initial use of the ultrasound system, the user's ultrasound examination is simplified with the help of predefined protocols that provide step-by-step instructions.

Thanks to anonymized images, data encryption according to FIPS 197 and password-protected access, patient data is secured even when not in use. Data transmission is also encrypted. The device also supports enterprise-grade wireless encryption standards, including EAP and WPA2 (PSK)​ and has restricted administrative access to critical settings such as Wi-Fi encryption and MDM client installation.

The diagnostic ultrasound system is optionally equipped with a sector probe or a dual-headed probe consisting of a linear and sector transducer. In addition to the ultrasound unit and the respective transducer, the delivery also includes a global AC adapter, a rechargeable battery, a USB cable, two micro SD memory cards, a protective cover and ultrasound gel (60g).

Product Details

• Vscan Extend™ Ultrasound System from GE
• Pocket-sized diagnostic ultrasound system
• Ideal for measuring anatomical structures and fluids
• Enables examinations directly at the bedside or accident site
• Features a simplified user interface, intuitive touch screen operation
• Booted up from standby mode within 10 seconds
• The range of functions can be extended with additional applications
• Data transfer via USB or Wi-Fi
• With integrated DICOM interface
• Easy and quick to clean
• Available with a choice of dual or sector transducers
• Perfect for use in medical practices and clinics
• Can be used on both children and adults
• Manufacture's warranty: 3 years (1 year standard, 2 years extended warranty)

Features

• Imaging modes: B-mode, Lung M-mode and colour Doppler

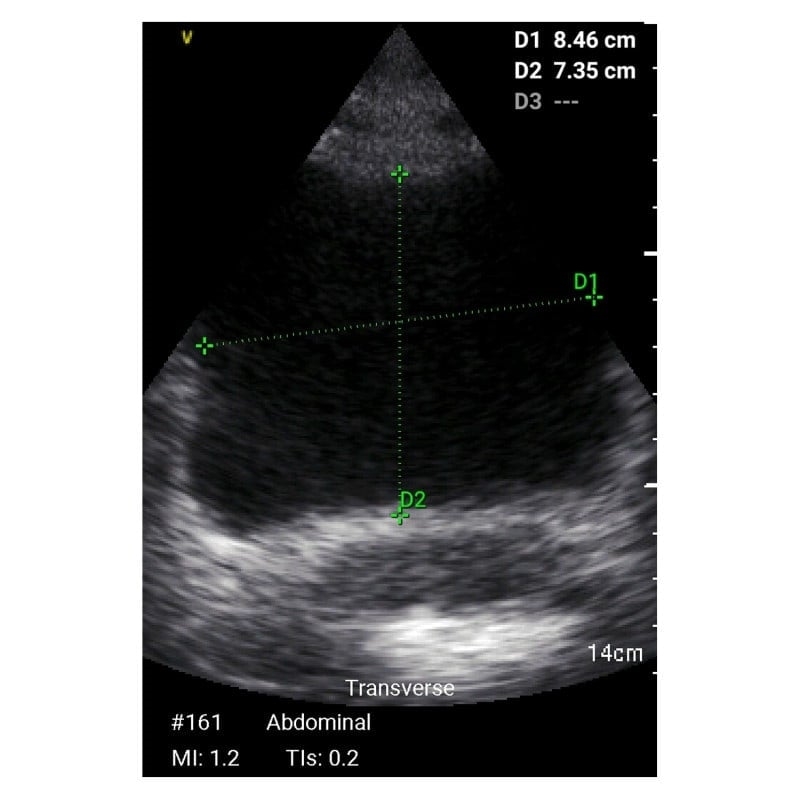

• Black and white mode for imaging anatomical structures in real time
• Colour-coded overlay for real-time blood flow imaging
• Field of view for black and white images: up to 70 degrees with a maximum depth of 24 cm
• Presets to simplify optimized settings for imaging different organs
• Preset protocols simplify the steps of an ultrasound examination
• Automatic detection of the entire cardiac cycle
• Replaceable battery

Areas of Application

• Sector probe for imaging deep-seated structures
• Dual-headed probe (consisting of sector and linear probe) for imaging deep-seated and superficial structures
• For examination of the kidneys, heart and abdomen
• Perfect for urology, obstetrics and gynaecology
• For assessing the presence of fluid
• For imaging guidance for needle or catheter placement
• Suitable for both left- and right-handed users
• Secure data thanks to anonymized images, database encryption (FIPS 197) & password protection
• Encrypted data transmission, restricted administrative access
• Automatic detection of data loss risks
• Security risk assessment included

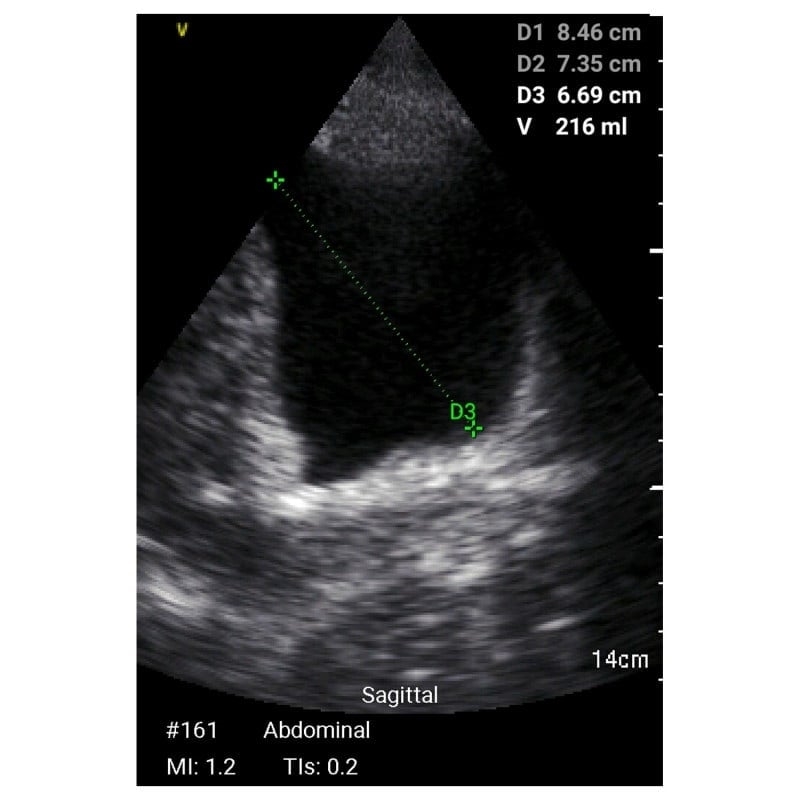

• Optional examination of bladder volume and lungs

Technical Data

• Display size: 168 x 76 x 22 mm
• 5 inch display, 720 x 1280 pixel resolution
• Weight ultrasound device: 321 g (battery included)
• Probe size: 129 x 32 x 25 mm (sector transducer); 129 x 28 x 28 mm (dual transducer)
• Frequency range: 3.3 - 8.0 MHz (linear probe); 1.7 - 3.8 MHz (sector probe)
• Probe weight: 85 g (sector transducer); 120 g (dual transducer)
• Continuous scan time of 60 minutes
• Battery charging up to 90% within 75 minutes

Compatible Apps

Auto Optimize, Bladder Volume, Comprehensive Label, Lung M-Mode, Lung Protocol, LVivo EF, Protocol Creator, Scan Coach FATE, Scan Coach FCU, Scan Coach RHD, Screen Mirror, Tricify Uplink

Delivery Contents

Vscan Extend ultrasound scanner, global power supply, rechargeable battery, USB cable, 2x Micro SD memory cards, protective cover, ultrasound gel (60g), user manual
