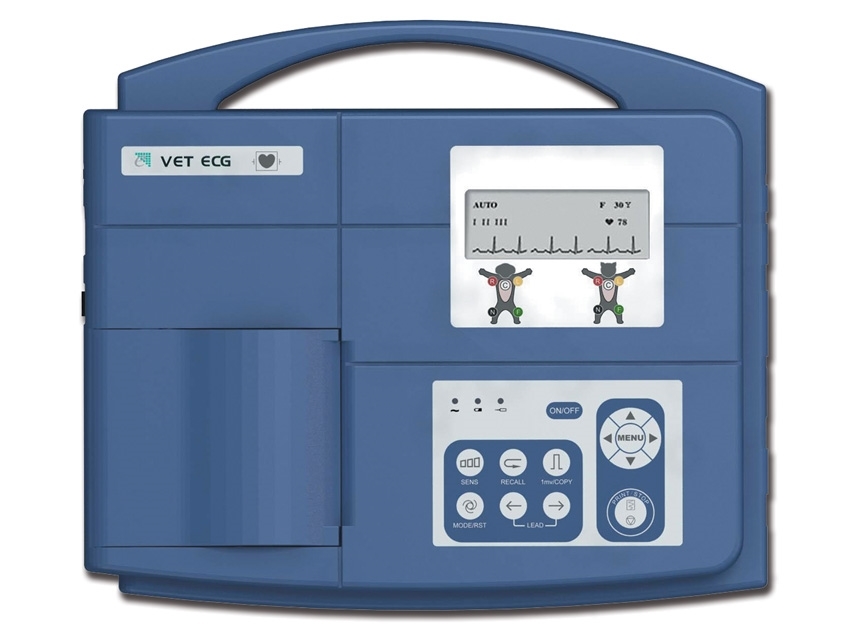

VE-300 - 3 CHANNEL ECG, 1 pc.

Description

VE-100 - 3 channel ECG
- complete digital design
- LCD display waveforms, parameters configurable
- 7 leads simultaneous acquisition (only 33306)
- built in rechargeable Li-ion battery for 3 hours use (Ac/Dc supply)
- automatic ECG parameter measurement and analysis (33306 only)
- complete digital filter, avoid baseline drift, Ac, emG interfere.
Baseline automatically adjustable, optimize printing position.
Technical Specifications
• Lead: standard 7 lead
• Acquisition mode: 7 leads simultaneously
• Frequency response: 0.05 Hz ~ 150 Hz
• Sensitivity: 2.5, 5, 10, 20 (mm/mV)
• Input impedance:>50 MO
• Filter:
- EMG Filter 25/35/45Hz / OFF
- DFT Filter 0.05/0.15/0.25/0.5 Hz
- Low pass Fliter 150/100/75 Hz
- AC Filter 50/60 Hz
• Recording mode: Auto/Manual/Rhythm/OFF/USBPRT
• Safety standard: IEC I/CF
• Power supply:
- AC: 100-115-220-240V, 50/60 Hz
- Built-in rechargeable Li-ion battery: voltage=14.4 V
- More than 3 hrs, continuously operation under battery supply
• Thermal paper: 80 mm x 20 m
• Paper speed: 5/6.25/10/12.5/25/50 mm/s (± 3%)
• Size: 300 x 260 x 75 mm
• Weight: 2.5 kg (with battery)
• Display: 192x64 pixel LCD
• External input/output:
- input: =100 kO; Sensitivity: 10 mm/V ± 5%
- output: =100 kO; Sensitivity: 1 mm/V ± 5%
• Communication interface: Ethernet, RS232, USB
Standard accessories
• 5-lead veterinary ECG cable (Ø 4mm, banana connector, IEC)
• Veterinary clip electrodes (set of 5, match Ø 3-4 mm ECG cable)
• 1 Paper roll
• Rechargeable lithium battery (2,200 mAh)
• Manual: GB, IT - on request FR, ES, DE
