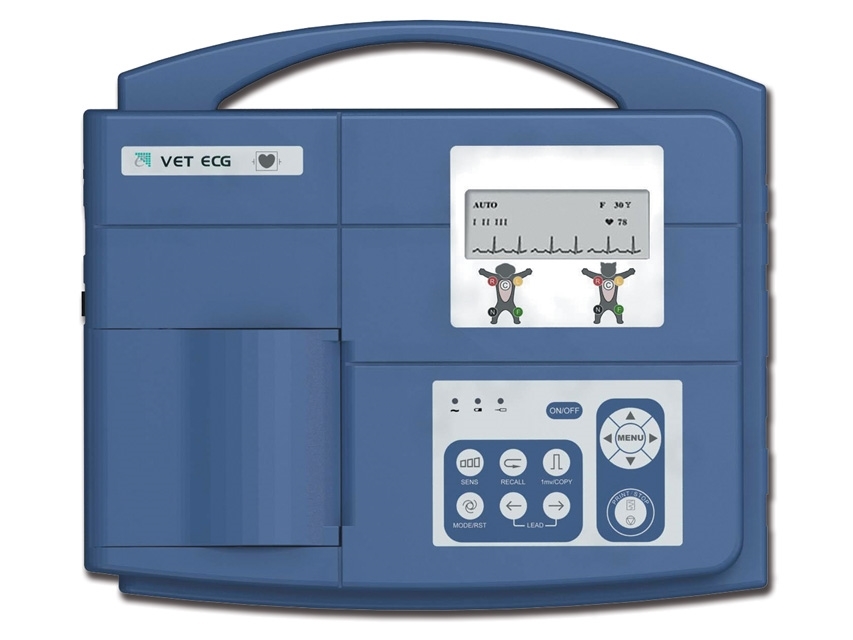

VE-100 - 1 CHANNEL ECG, 1 pc.

Description

VE-100 - 1 channel ECG

- Complete digital design
- LCD display waveforms, parameter configuration
- High resolution thermal printer
- Built in rechargeable Li-ion battery for 3 hours use (AC/DC supply)
- Complete digital filter, avoid baseline drift, AC, EMG interfere
- Baseline automatically adjustable, optimizes printing position
- Selectable auto/manual operation
Technical Specifications
• Lead: standard 7 lead
• Acquisition mode: single
• Frequency response: 0.05 Hz ~ 150 Hz
• Sensitivity: 2.5, 5, 10, 20 (mm/mV)
• Input impedance: >10 MO
• Filter:
- EMG Filter 35 Hz (-3dB)
- AC/DFT Filter 50/60Hz (-20dB)
• Recording mode: Auto/Manual
• Safety standard: IEC I/CF
• Power supply:
- AC: 100-115-220-240V, 50/60 Hz
- Built-in rechargeable Li-ion battery: voltage=14.4 V
- More than 3 hrs, continuously operation under battery supply
• Thermal paper: 5 mm x 30 m
• Paper speed: 25/50 mm/s (± 3%)
• Size: 300 x 260 x 75 mm
• Weight: 2.3 kg (with battery)
• Display: 192x64 pixel LCD
• External input/output:
- input: =100 kO; Sensitivity: 10 mm/V ± 5%
- output: =100 kO; Sensitivity: 1 mm/V ± 5%
• Communication interface: RS232
Standard accessories
• 5-lead veterinary ECG cable (Ø 4mm, banana connector, IEC)
• Veterinary clip electrodes (set of 5, match Ø 3-4 mm ECG cable)
• 1 Paper roll
• Rechargeable lithium battery (2,200 mAh)
• Manual: GB, IT - on request FR, ES, DE
