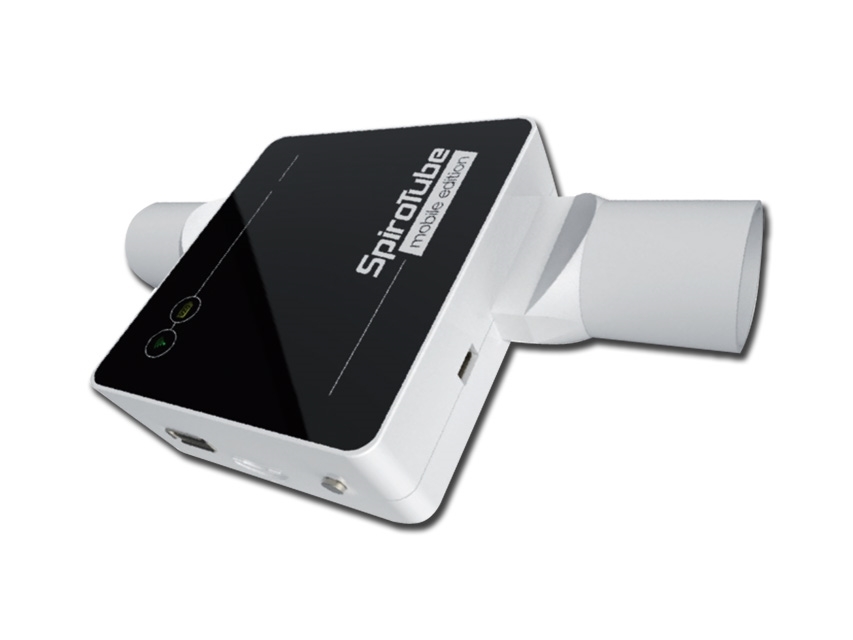

SPIROTUBE MOBILE EDITION BLUETOOTH SPIROMETER, 1 pc.

Description

Pulmonary function diagnostics and monitoring spirometer with Bluetooth communication interface and built in rechargeable battery. Suitable for screening COPD and asthma.

- Wireless connection to mobile phones, PDAs, android systems
- Real-time measurement with FVC curve visible on the mobile screen
- Plug & play USB connection to PC
- Automatic internal calibration
- Tele-medical connection via Bluetooth
- Automated medical interpretation
- Long-term monitoring for home care use
- Pharmaceutical testing subsystem
- Flow tube disinfectable by cold sterilization
- Software can be downloaded free from Google Play Store
- Made in Europe

REGISTRATIONS
All spirometers are CE marked and registred in Indonesia, Hong Kong, Australia, New Zeland, Korea, Argentine.
Technical Specifications
• Flow measurement principle Idegen™ multiple-path
• Flow tube: Ø 30 mm (OD)
• Dead space 16.8 ml
• Flow resolution 3 ml/s
• Flow precision 2%
• Flow range ±18 l/s
• Connection to PC USB
• Size: 40 x 60 x h 150 mm
• Weight: 300 g

MEASURED PARAMETERS
- FVC, -FEV*0.5, FEV*0.5/IVC, FEV*0.5/FVC,FEV*1.0/IVC, FEV*1.0/FVC, PEF, FEF*25-75%, MEF*75%,MEF*50%, MEF*25%, FET, MTT, FIVC, FIV*0.5, FEV1/FVC (Tiffeneau index) FIV*1.0, PIF, FIF*25-75%, IRV. ERV, TV, Breath rate value
- Insp./Exp. ratio: 1:10 to 10:1
Standard accessories
• Plastic muthpieces
• Mini USB cable
• Cups for disinfection
• Battery charger
• Paper manual (GB)
• CD manual (GB, IT, ES, DE, HU)
