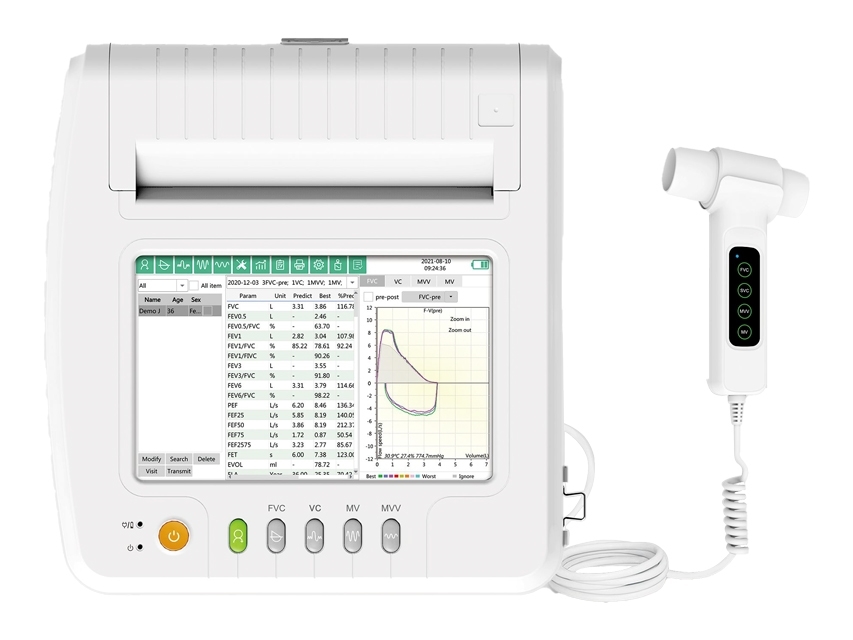

SP-100B SPIROMETER

Description

Portable device for testing pulmonary function, it adopts differential pressure acquisition principle to measure over 100 parameters related to Forced Vital Capacity (FVC), Ratio (FEV1/FVC)Vital Capacity (VC), Maximal Voluntary Ventilation (MVV) and Minute Ventilation (MV) functions.

Real-time displays respiratory waveform: flow-volume loop and volume-time curve, which is applicable for diagnosis and therapeutic evaluation of lung diseases.

- English firmware and software
- inspiratory and expiratory parameters, real-time curve display
- BTPS correction function measures temperature, humidit and barometric pressure automatically
- calibration control: volume calibration, three flows verification
- display the optimal value from many measurements
- tester condition can be reflected by the ratio of the measured value and the predicted value
- data memory, delete and information review functions
- trend chart display
- prompt functions for over limit of volume and flow
- rechargeable lithium battery, with charging prompt
- built-in multiple predicted values
- support bronchial dilation/provocation test
- pulmonary function assessment
- patient information can be entered, managed and queried
- test report printable by built-in 210 mm thermal printer

Technical Specifications

Display: 10.1" touch screen colour LCD
Display resolution: 1280x800 pixels
Volume range: 0~10 l ± 3% or ± 0.05 l (whichever is greater)
Flow range: 0~16 l/s ± 5% or ± 0.17 l (whichever is greater)
Power supply: DC 14.8 V rechargeable lithium battery or AC 220V 50 Hz
Power consumption: P = 150 V A
Size - weight 340x320xh 86 mm - 4 kg
Safety: Class I, type BF
Standard accessories
Spirometer probe
Recording paper
100 mouthpieces (50 flat and 50 round)
Power cord
Nose clip
User manual: GB, FR, IT, ES
