SONY UP-25 MD COLOUR PRINTER, 1 pc.

Description

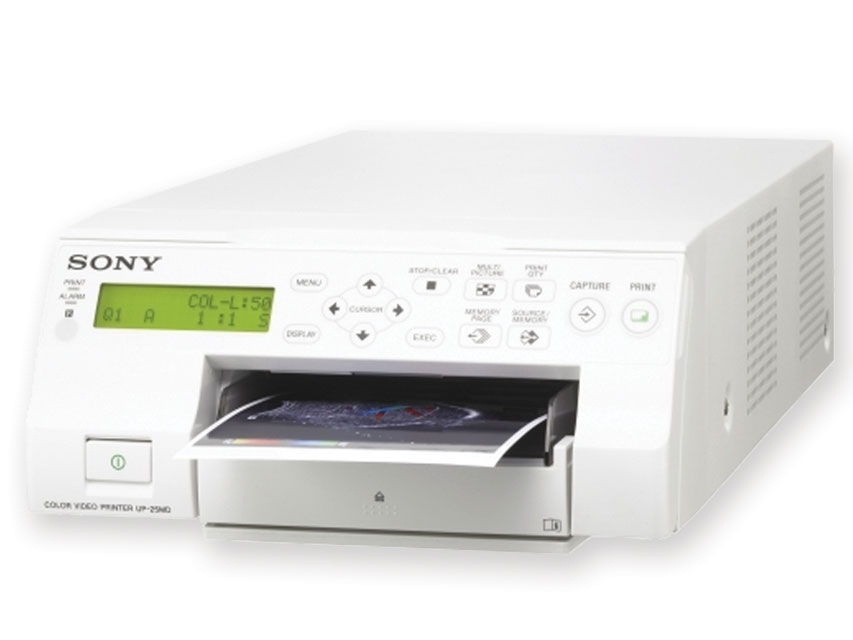

The UP-25MD is a high quality printer designed for medical applications. It features a variety of analogue video inputs for standard definition as well as high definition signals and is compatible with a wide range of medical imaging devices. The printer’s photo-quality dye sublimation technology ensures that prints are durable and long-lasting. It is compatible with our traditional UPC-21S/L media series and the self-laminating media UPC-24SA/LA. It seals and protects printed images against environmental hazards. Colours can be adjusted using RGB or HSV colour spaces to match monitor output and to optimise colour reproduction accuracy.
Technical Specifications
• Printing method: Dye sublimation thermal transfer
• Resolution: 423 dpi
• Picture elements:
- UP-21L/24LA: 2132 x 1600 dots
- UP-21S/24SA: 1600 x 1260 dots
• Picture area:
- UP-21L/24LA: 127.9 x 96.0 mm (5 1/8 x 3 3/4 inches)
- UP-21S/24SA: 96.0 x 75.6 mm (3 3/4 x 3 inches)
• Printing time:
- UP-21L: Approx. 29 s
- UP-21S: Approx. 19 s
- UP-24LA: Approx. 36 s
- UP-24SA: Approx. 25 s
• TV system: Select from NTSC/PAL signal system (using NTSC/PAL switch)
• HDTV IN/OUT signals:
- 1080i/59.94i, 1080/50i (2:1 interlace)
- 720/59.94p, 720/50p (progressive)
• Paper tray capacity:
- L size: max. 50 sheets
- S size: max. 80 sheets
• Interface:
- RGB/Y/Pb/Pr (BNC) (×3): 0.7 Vp-p
- SYNC ON G: 0.3 Vp-p, sync negative
- SYNC (BNC) (×1): 0.3 to 4 Vp-p, sync negative
- S VIDEO (4-pin mini-DIN)(×1):
- Y: 1 Vp-p, sync negative
- C: 0.286 Vp-p (NTSC), 0.3 Vp-p (PAL)
- VIDEO (BNC) (×1) : 1 Vp-p,sync negative
• Control connectors:
- REMOTE 1: special mini jack (×1) for RM-5500 Remote Control Unit (not supplied)
- REMOTE 2 (automatic printing connector): Stereo mini jack: (×1) for optional RM-91 Remote Control Unit or FS-24 Foot Switch
- RS-232C (Computer control interface): D-sub 25-pin connector(×1)
• Power requirements: AC 100 V to 240 V, 50/60Hz
• Input current: from 1.7 A to 1.0 A
• Operating temperature: from 5°C to 35°C (41°F to 95°F
• Size 212 (W) x 98 (H) x 398 (D) mm, (8 3/8 x 3 7/8 x 15 5/8 inches)
• Weight: 5.7 kg (12 lb 6 oz)
