Description
Professional vein showing system

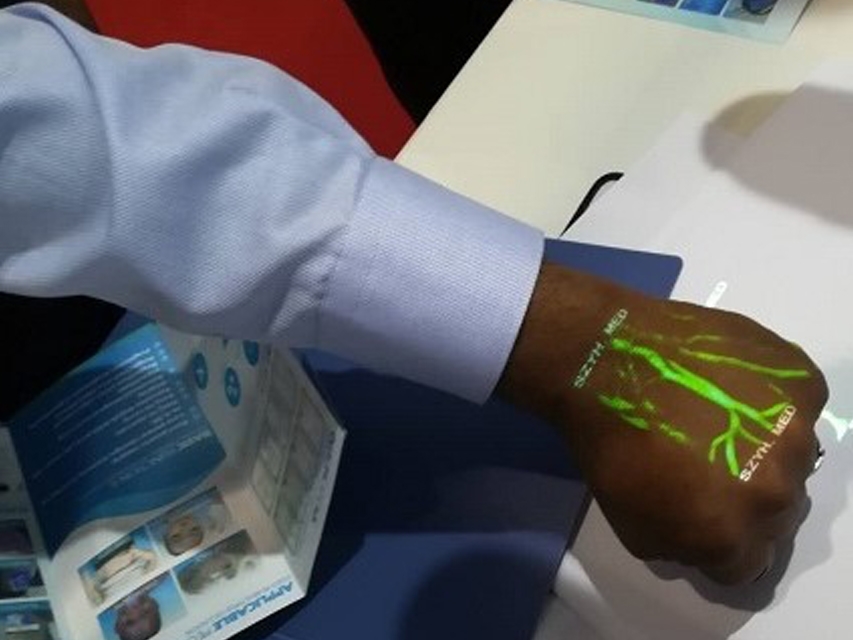

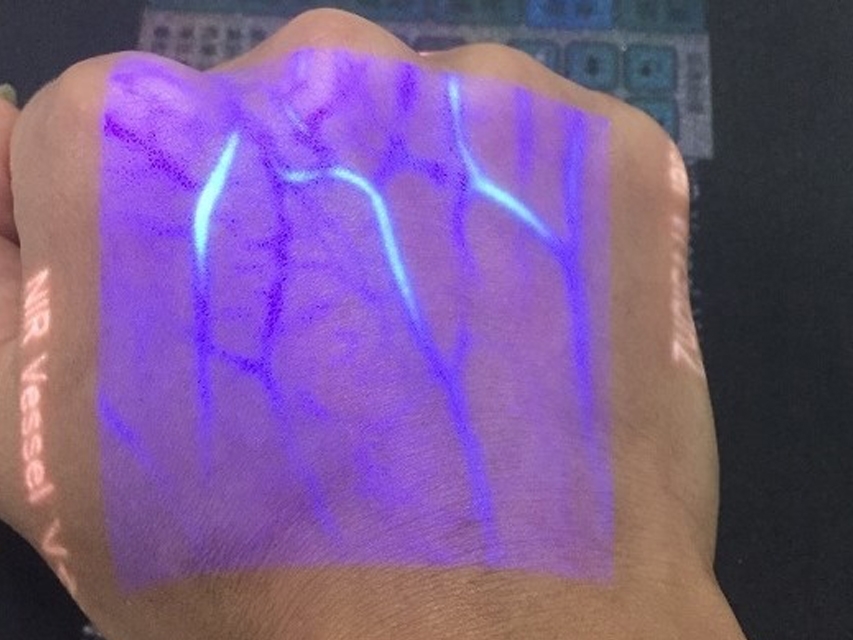

Vein showing system with high definition real-time 3D images helps healthcare professionals locate veins much more easily on patients with difficult venous access. Harmless near-infrared light is projected on to the skin and then absorbed by blood, but reflected by surrounding tissue.
5 different projection colours available: green, blue, purple, white and green+, in order to locate veins much better for patients with different skin tones and to relieve visual fatigue for the operator.
Projection size: adjustable size from basic mode 480x640 to small size 120x320 and vice-versa.
Application:
Vein showing system is especially suitable for patients with small veins, low blood perfusion rate veins, frequent venipuncture, vascular lesions and the patient who needs to be punctured in the particular vein. Suitable also for cosmetic procedures.

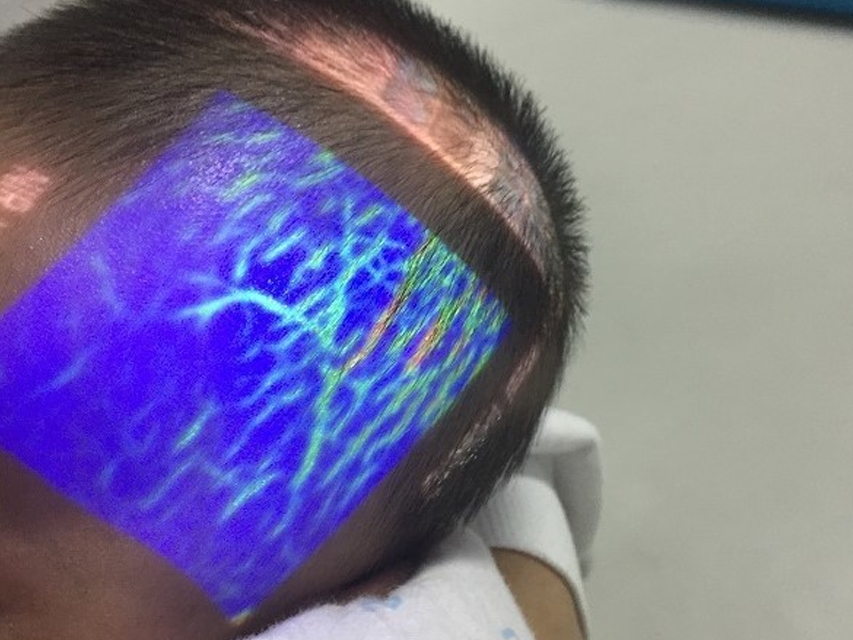

Vein showing system works for all body types and skin tones: infant/children, geriatric, oncology patients, obese patients dark-skinned, dermatosis and scar patients.
Clinical areas: pediatric, emergency, plastic surgery, radiology, laboratory, operation room, vascular surgery, geriatrics, etc.
The medical grade design allows the device to be easily wiped clean, bagged for use in isolation, and does not require calibration as it is permanently aligned. The easy to use Vein showing system can be held in any direction above the vein being viewed.
Technical Specifications
Display: OLED 1.3" and DLP projection
Input power: 35 VA
Light Source: Infra-Red
Radiation: NO
Image Resolution (pixel): 640x480, 480x640, 120x320
Projection Accuracy: Vertical and horizontal offset =0.3mm for 20-26 cm
Best projection distance: 23 cm ±3 cm
Power supply: 100-240V AC, 50/60Hz input, 12V DC output 5,0 A
Rechargeable battery: Lithium lon 7.4V DC, 2600 mAh
Battery working time: 4,5 hours
Battery charging time: 3 hours
Dimension - Weight: 23.5x6.6x7cm - 500g
Standard accessories
Power cord
Rechargeable battery with charger
Multilanguage user manual: GB, IT
Cleaning cloth
