PC-8000 PRO TWINS FOETAL MONITOR, 1 pc.

Description

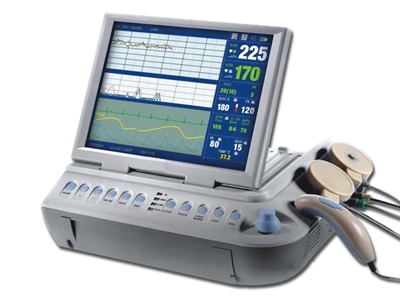

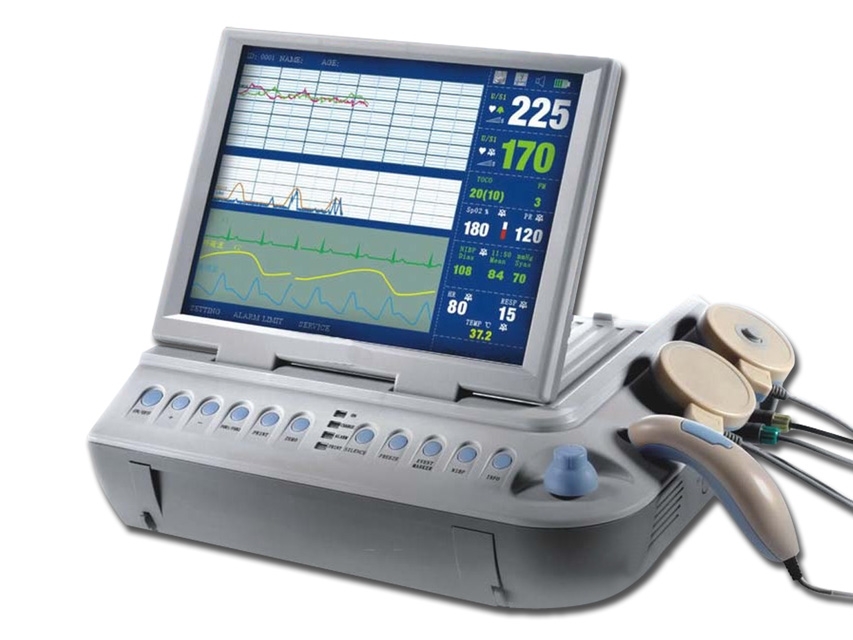

PC-8000 PRO TWINS FOETAL MONITOR

Maternal foetal monitor suitable for hospital use.

Main features:
- 12.1” High-brightness TFT display (800x600 pixel)
- parameters: ECG, SpO2, NIBP, TEMP, RESP, PR, FHR, TOCO & FM
- rotatable screen viewed from different directions and 5 different styles of operation display
- equipped with reliable, high sensitivity,12-element pulse doppler transducer
- FHR and TOCO trend review
- store and view of 48-hours monitoring data
- built-in Linux operation system
- built-in high-speed thermal printer
- internal rechargeable Li-ion battery
- visual and audible alarms
- selectable internal software: GB, FR, IT, ES, PT, PL, RU, TR.
Technical Specifications
Foetal monitoring:

• Ultrasonic probe
- Ultrasonic working frequency: 1 MHz tolerance: ±5%
- ISATA: =10 mW/cm2
- Foetal heart rate measuring range: 50 - 240 bpm ±2 bpm
- FHR alarm: when the FHR value exceeds the preset value, the monitor will send an alarm for 30 s that will stop by pressing alarm key

• TOCO probe
- Zero setting mode: manual
- TOCO measuring range: 0 ~ 100% tolerance: ±10%

• Marker mode
Mode: Manual and AUTO

• ECG/RESP Monitoring:
- ECG amplification bandwidth:
Monitoring mode: 1 - 40 Hz (+0.4 db -3 db)
Diagnostic mode: 1 - 75 Hz (+0.4 db -3 db)
HR range: 30 ~ 300 bpm (±1% or ±1 bpm, whichever is greater)
CMRR (Common-Mode Rejection Ratio): =80 dB
- Time constant: Monitoring mode: =0.3 s, Diagnostic mode: =3.2 s
- ECG gain: X1/2 5 mm/mV ±5%, X1 10 mm/mV ±5%, X2 20 mm/mV ±5%
- RESP monitoring range: 0-100 rpm (±5% or ±2 rpm, whichever is greater)

• NIBP Monitoring:
- Measuring technology: Automatic measurement by smart oscillating method
- Initial cuff inflation pressure: adult mode 180 mmHg
- Max. inflation pressure allowed: adult: 300 mmHg
- Accuracy: ±10% or ±10 mmHg, whichever is greater
- Factory-set measuring mode: manual
- Measuring intervals: 1-240 minutes adjustable, interval tolerance: <10s
- Monitoring range:
Systolic pressure: 50 ~ 240 mmHg
Mean arterial pressure: 25 ~ 200 mmHg
Diastolic pressure:15 ~ 180 mmHg
- Measurement accuracy ±8 mmHg

• SpO2/Temperature Monitoring:
- Pulse oxygen saturation range: 0 - 99% (75 - 99% ±2%, 50 - 74% ±3%)
- Pulse rate: 30 - 240 bpm (±2% or ±2 bpm, whichever is greater)
- Temperature response time: =150 s

• Other Technical Information and Parameters:
- Mains power supply: 100 ~ 250 VAC, 50/60 Hz <100 VA
- Internal power supply: Li-ion, rechargeable battery
6 hours to full recharge during monitoring
4 hours to full recharge when monitor is off
- Display mode: TFT display
- Alarm: audible & visible alarm
- Networking interface: Net port
- Printing paper Z-Fold, 112x90 mm
- Protection against electric shock: Class I
- Size: 36 x 30 x h 12 cm
- Weight: 4 kg

• Built-in thermal printer
- 1/2/3 cm/min real time printing speed, fast print speed (stored traces)
- Record message ID, name, age, date, time, print speed etc.
Standard accessories
• US probe (ultrasonic probe): 2
• UC/TOCO probe (uterine contraction probe): 1
• Event marker (foetal movement probe): 1
• Abdominal belt: 2
• Ultrasonic coupling gel: 1
• ECG cable: 1
• Blood pressure cuff: 1
• Blood oxygen probe: 1
• Body temperature probe: 1
• Power cable: 1
• Grounding wire: 1
• Disposable electrode: 10
• User Manual (GB, IT): 1
