MIC Wi-Fi & USB CAMERA (C-mount), 1 pc.

Description

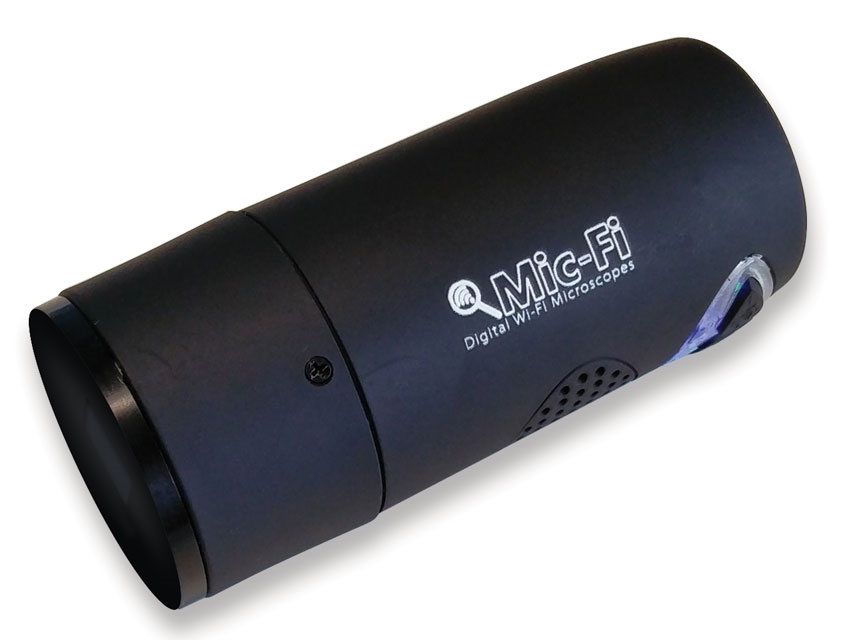

MICFIEYE - Wi-Fi/USB CAMERA (C-mount) FOR ENDOSCOPES AND MICROSCOPES

MICFIEYE is a Wi-Fi camera with C-mount and allows to digitalize the image on tablets, smartphones and PC using dedicated Apps and Softwares.

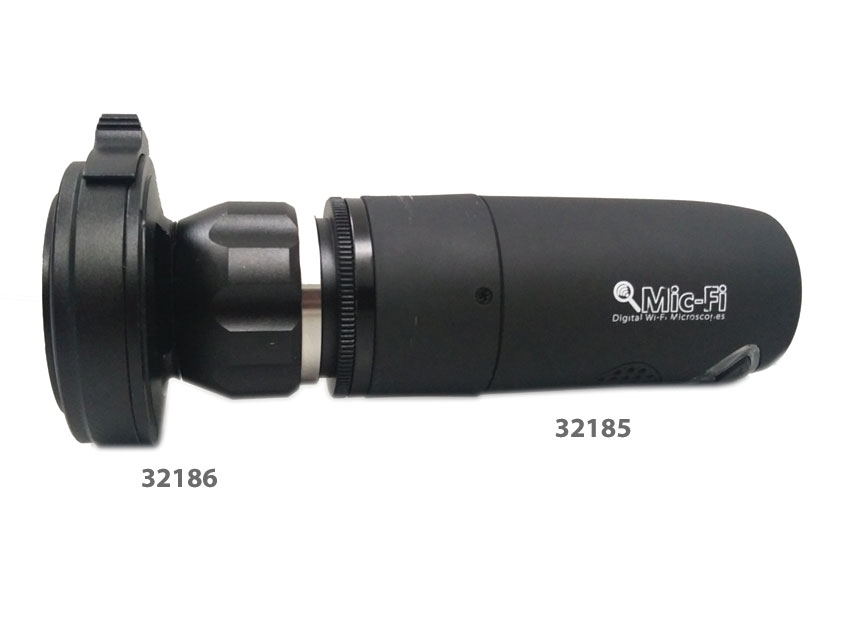

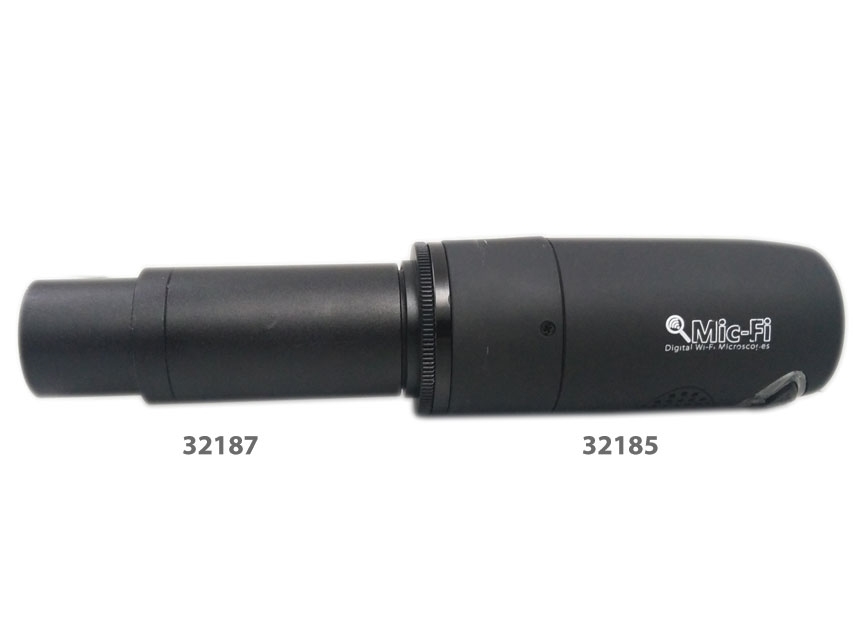

MlCFIEYE needs an adapter to be compatible with all optical devices such as microscopes, endoscopes, boroscopes, fi berscopes, C-mount lenses etc.

Each camera is supplied with USB cable (1.2 m), USB AC adapter, user manual (GB, IT, FR, ES, DE), software can be downloaded free of charge from web.
Technical Specifications
• Camera Type: Colour CMOS camera
• Sensor: ¼ Imax CMOS
• Resolution: 1.3 MP
• Image pixel: 320 x 240, 640 x 480, 1280 x 1024
• Lens standard: C-CS mount CCTV lens
• Automatic optical features: Gamma correction, exposure, white balance, black reference, flicker avoidance, defect identification, colour saturation
• Button snapshot: yes for Wi-Fi and USB mode
• Dimension: Ø 36 x 75 mm
• Wi-Fi transmission distance: =5 m
• Video resolution: 1.3 MP, 320 x 240, 640 x 480, 1280 x 1024
• Frequency range: 2,400-24,835 GHz
• Li-Ion battery: Continuous working time - approx 2.5 hours
• Power source: 5 V / 1A or USB (use only USB wall adaptors certified according the CE and/or FCC regulations)
• OS support: iOS / Android / Windows / Mac
• Software features: USB and Wi-Fi MIC-fi : snapshot, video recording, calibration and measurement. Take time lapsed picture, (only USB Micfi eye)
