MESI mTablet SpO2

Description

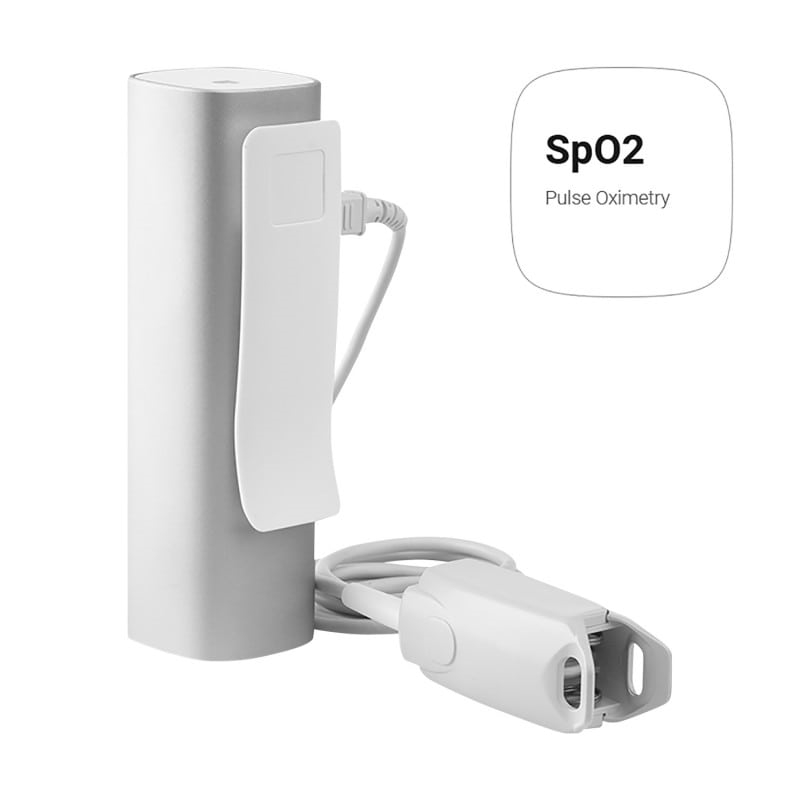

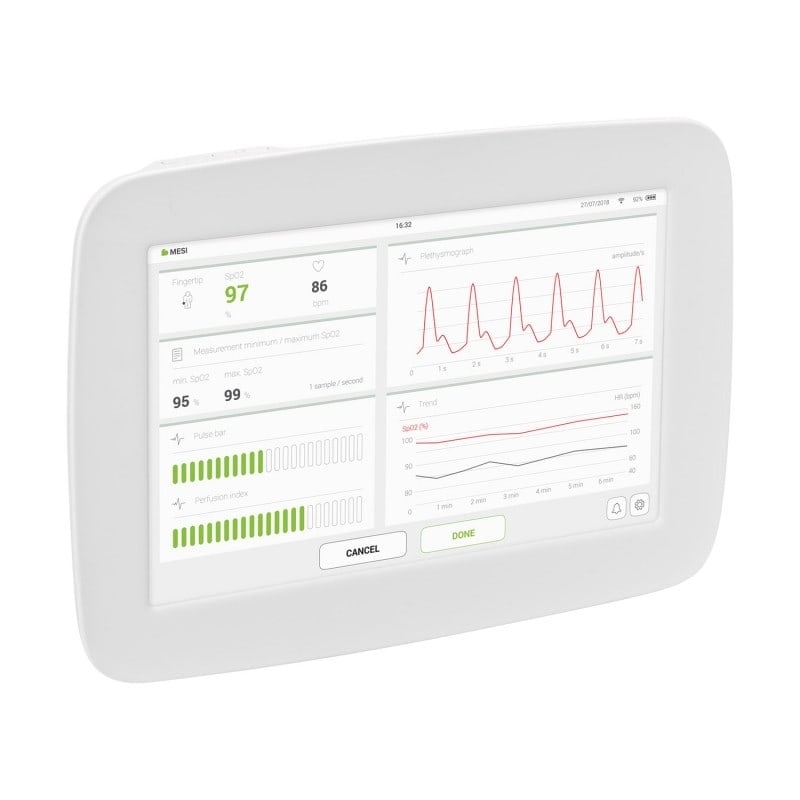

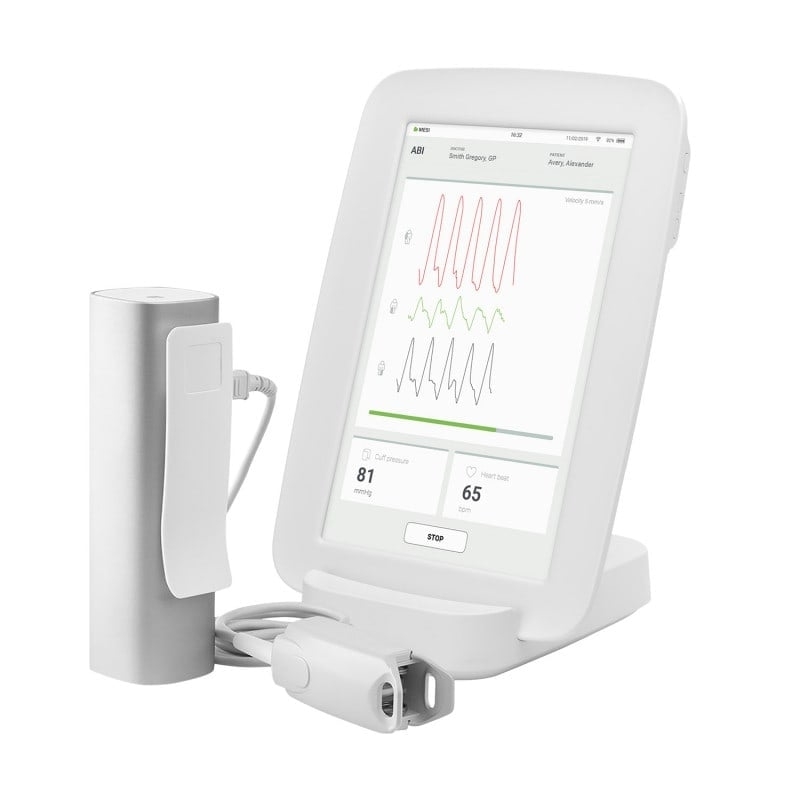

MESI mTablet SpO2 for the precise and flexible measurement of oxygen saturation and pulse rate. The system consists of a medical tablet and a battery-powered SpO2 module that transmits the measured data wirelessly to the tablet. The measured data is shown in real time on the large, clear display. The MESI mTablet has an intuitive user interface, as well as an electronic patient file in which all examinations can be stored. The values can also be easily shared with specialist colleagues.

The system can be individually supplemented with extensions and other modules and expanded into a complete diagnostic unit. In addition, various apps are available in order to perform special examinations, such as the 6-minute walk test.

The MESI mTablet SpO2 is supplied as a complete, ready-to-use set including SpO2 module and charging station.

Product Details

• MESI mTablet SpO2
• Individually expandable medical diagnostic system
• Module-based medical tablet
• Supplied with SpO2 module for oxygen saturation measurement
• Intuitive user interface
• Large, easy to read screen
• Very good functionality, even with low perfusion
• Wireless transmission of data from module to mTablet
• Acoustic and visual warnings in case of deviations from the target value
• Over 8000 measurements with one battery charge
• Trend analysis
• Additional SpO2 modules can be added to the system to monitor multiple patients simultaneously
• With the help of apps, the system can be expanded to include e.g. the 6-minute walk test and other functions

Technical data

• For measuring oxygen saturation and pulse rate
• Measuring range SpO2: 45 - 100 %
• Measuring range pulse rate: 20 - 300 beats/minute
• Accuracy plethysmogram: 0 - 28 LSB
• Accuracy Roth plethysmogram: 0 - 244 LSB
• Accuracy signal quality: 0 - 100 %
• 8 GB memory
• 5 MP camera
• Mono loudspeaker
• Screen: 1280 x 800 px IPS
• Equipped with a high-performance lithium polymer battery
• Up to 56 hours of continuous use or approx. 8000 examinations per battery charge
• Charging time with fully discharged battery: approx. 2 hours
• Dimensions and weight of the charging station: 40 x 20 x 3.8 cm, approx. 675 g
• Dimensions and weight of the module: 4 x 4.8 x 13.5 cm, approx. 210 g
• Protection class IP44
