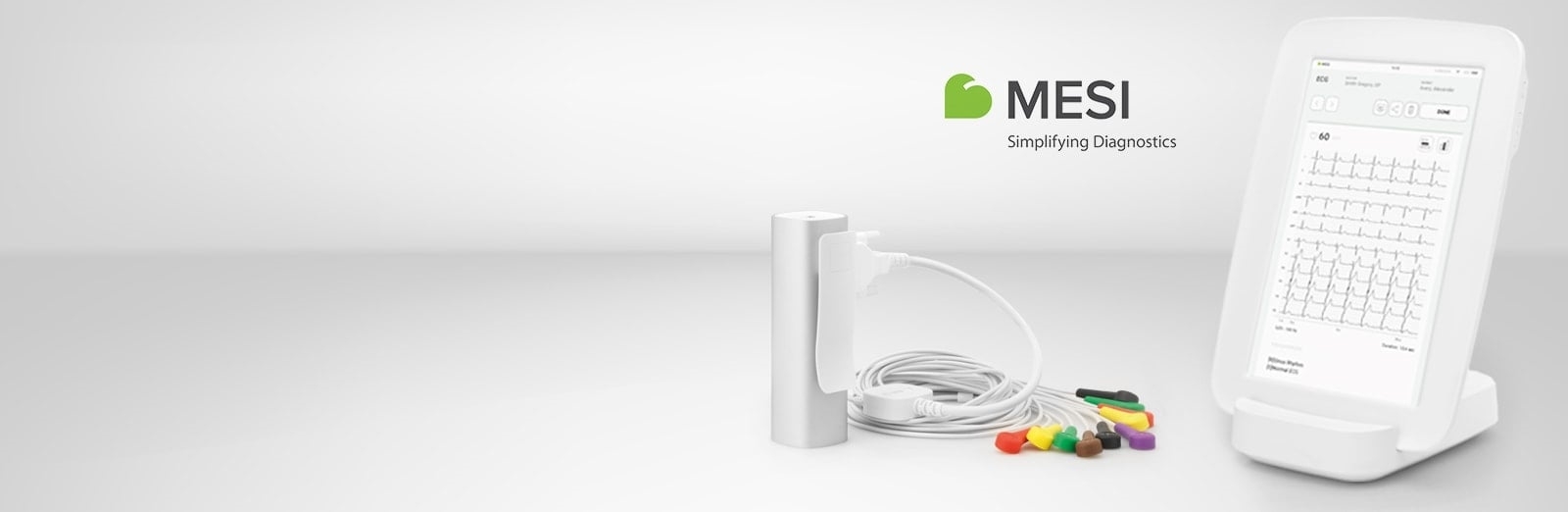

MESI mTABLET ECG

Description

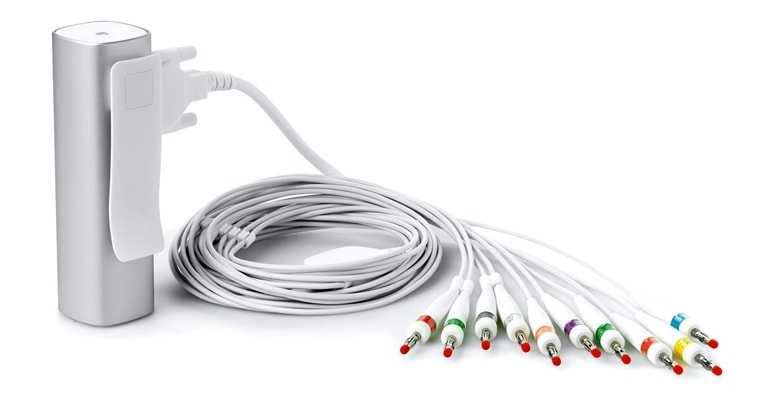

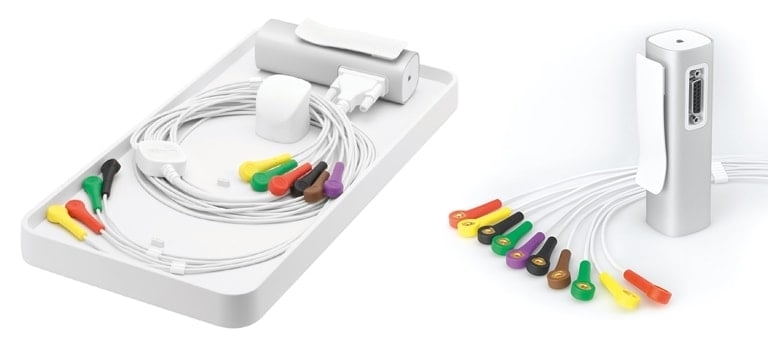

The MESI mTABLET ECG includes a medical tablet, a wireless and battery operated ECG module and a patient cable for recording 12-lead resting ECGs. The mobile ECG monitor can be used for adults and children and provides a high level of hygiene thanks to the use of disposable electrodes.

For ECG recordings, an instruction screen is displayed to assist the user in correctly placing the ECG electrodes. The examination and setting of the filters, recording speed and sensitivity are managed directly from the tablet. It is possible to choose between an automatic 10 second long recording or a manual recording of maximum 5 minutes.

The preinstalled analysis software automatically evaluates the ECG recording and provides the doctor with an interpretation of the data.

Product Details

• ECG system with expandable medical tablet
• For recording 12-lead resting ECGs in adults and children
• Automatic analytical reports with the Glasgow algorithm
• More than 100 ECG recordings with one battery charge
• Charging time: approx. 2 hours
• Defibrillation protection & pacemaker recognition
• Charging time: approx. 2 hours
• Low-pass filter, high-pass filter, myogram filter, mains filter
• Adjustable recording speed and sensitivity
• Recording method: AUTO (10 second automatic measurement), MANUAL (manual recording of max. 5 minutes.
• Optional EHR (Electronic Health Record)

One System – Many Uses

If needed, the MESI mTABLET ECG can be expanded with many different diagnostic modules, e.g. a MESIBP or a SpO₂ module. The decisive advantage of this system is that the data can be viewed, evaluated and forwarded centrally.  This means that not only correlations between individual examinations but also trends that emerge during follow-up examinations can be identified very easily.

Whether mobile within the medical facility or on house calls – MESI offers the possibility to carry out professional examinations wherever they are needed.
