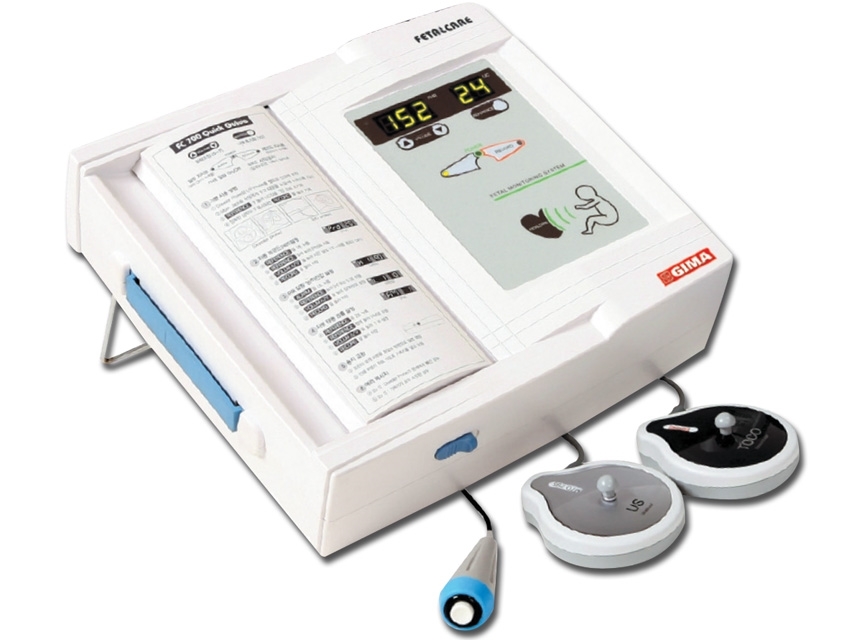

GIMA FC 700 FOETAL MONITOR, 1 pc.

Description

Cost-effective single foetal monitor

Extreme ultrasound doppler sensitivity:
- high-accuracy with 1 Mhz frequency
- automatic/manual Foetal Movement detection
- auto NST (Non-stress test) function from 10 min. to 1 hour

Data printout
- CTG analysis printing
- A4 size chart paper with perforation line
- plain thermal fax paper usable
- print speed 1, 2, 3 cm/min

Easy-to-use
- one- touch operation and easy setup
- alarm function (FHR high-low)
- s/w upgrade via internet
Technical Specifications
• Dimensions: 296 x 92.5 x h 305.5 - approx. 2.9 kg
• Display: 7 segment LED - 2 channels (FHR, UC)
• Thermal printer print speed: 1, 2, 3 cm/min, paper feeding function
• Power adaptor
- input: 100-240 VAC, 50-60 Hz, 1.2 A
- output: 18 VDC, 2.5 A
• External link: RS-232C
• Foetal heart rate
- input signal: ultrasound pulsed doppler
- ultrasound frequency: 1.0 Mhz
- ultrasound power: <10 mW/cm2
- FHR detection method: auto correlation
- FHR range: 50-240 bpm ±1 bpm (120-160)
• Uterine contraction
- reference (zero) control: one touch switch
- measurement range: 0-99 units
• Foetal movement measurement detection source: ultrasound pulsed doppler
• Auto CTG analysis
- average baseline FHR
- number of UC
- number of acceleration
- number of deceleration (late, early, variable)
- Tachycardia (moderate, severe)
- Bradychardia (moderate, severe)
Standard accessories
• Doppler transducer
• Toco transducer
• Event marker
• Printer paper
• Gel
• Belts
• Manual
