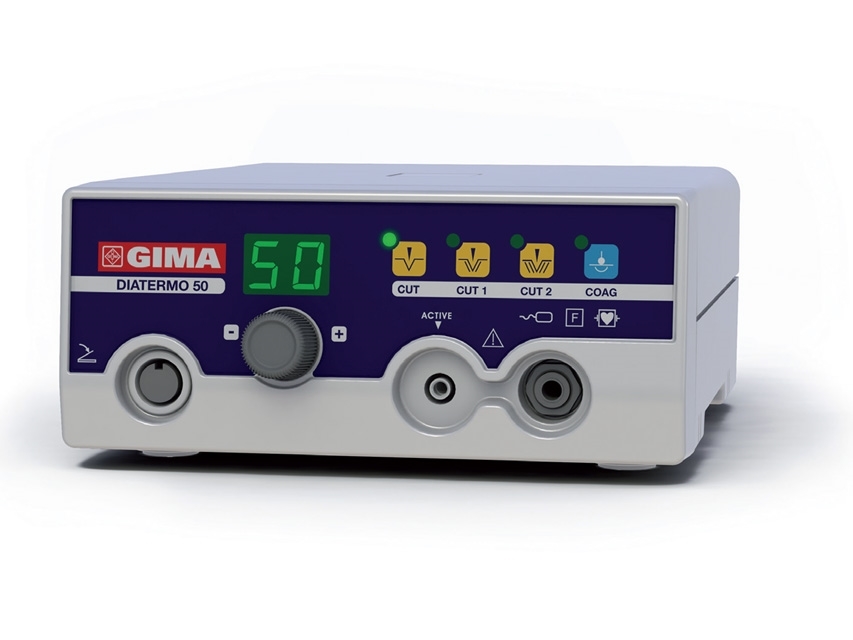

DIATERMO 50D monopolar - 50 Watt, 1 pc.

Description

DIATERMO 50 - monopolar

Radiofrequency electrosurgical unit suitable for minor monopolar surgery.

Diatermo 50 through the function selection makes pure cut, cut coagulation (CUT 1 - CUT 2) and pure coagulation possible.

The one-board microcontroller and digital display guarantee high safety and reliability under any conditions.

They offer outstanding professional surgical results due to their ergonomic and superior safety features.
Technical Specifications
• Max output power CUT: 50 W - 400 Ohm
• Max output power CUT/COAG1: 45 W - 400 Ohm
• Max output power CUT COAG2: 40 W - 400 Ohm
• Max output power COAG: 40 W - 400 Ohm
• Working frequency: 600 KHz
• Patient circuit: F
• Selectable input voltage: 115 - 230 Vac
• Mains frequency: 50 - 60 Hz
• Electrical input power: 200 VA
• Size W x H x D mm: 190 x 85 x 239
• Weight: 2.5 kg
• Controls: Patient/Plate circuit monitoring, Output power monitoring, Self check control
• Safety: EN60601-1, EN60601-1-2, EN60601-2-2
• Electrical Class: I CF
• MDD 93/42/EC Class: II b
Standard accessories
• Single use handle
• Waterproof foot-switch (30577)
• MB flat neutral plate with cable (30564)
• Kit of 6 short autoclavable electrodes, Ø 2.4 mm, length 5 cm (30501/2/4/7/9/10)
• Power cable 2 m - Schuko plug
• User manual: GB, IT, available on request FR, ES
