DIATERMO 106 monopolar - 50 Watt, 1 pc.

Description

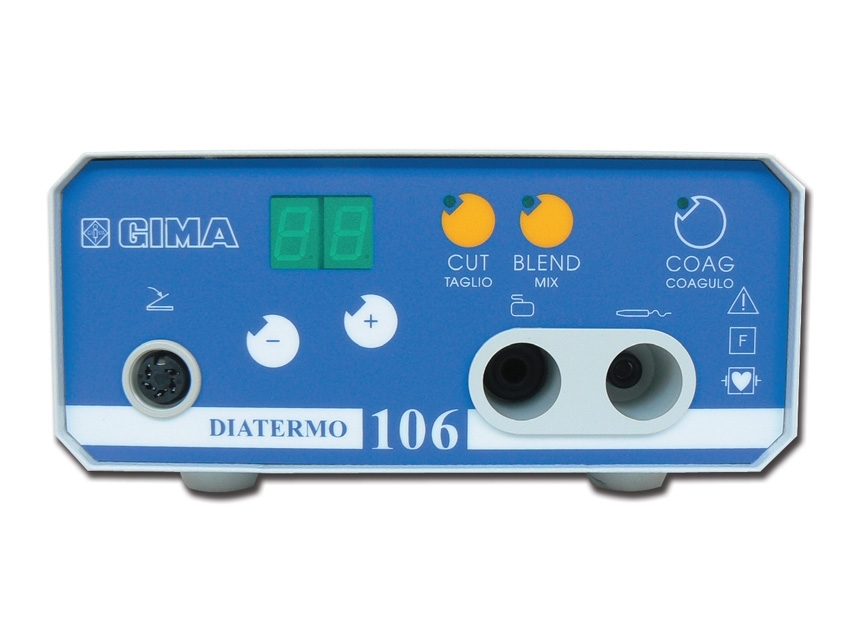

DIATERMO 106 - 50W - monopolar

This HF electrosurgery unit is particularly suitable for small operations and is recommended for dentistry, first aid and dermatology work.
It offers precision of cut and immediate coagulation and give excellent results in a wide range of applications: from uterine coagulation to microcoagulation in dermatology.
The modes of operation, CUT, COAG or BLEND, can be easily selected by a switch on the front panel.
The complete isolation between patient and the unit and strict respect of international norms guarantee total safety.
Technical Specifications
• Output power:
- CUT 50 W/400 ohm
- COAG 40 W/400 ohm
- BLEND 45 W/400 ohm
• Working frequency: 600 KHz +/- 10%
• Size: 180 x 180 x h 100 mm
• Weight: 2.8 kg
• Operating Voltage: 115/230 V - 50/60 Hz switchable
• Electric input power: 90 VA
• Fuse: 2 x 1 AT
• Alarm for overheating
• Footswitch operating
• Norms: EN60601-1Class I CF, EN 60601-1-2 93/42/EEC (Class IIb)
• Made in Italy
• Warranty: 12 months
Standard accessories
• KIRKY single-use handle without buttons
• Standard foot-switch (code 30577)
• Rod neutral electrode and cable
• Kit of 6 short autoclavable electrodes, Ø 2.4 mm, length 5 cm
• Power cable 2 m - Schuko plug
• User manual available in: English, Italian, Spanish, French
