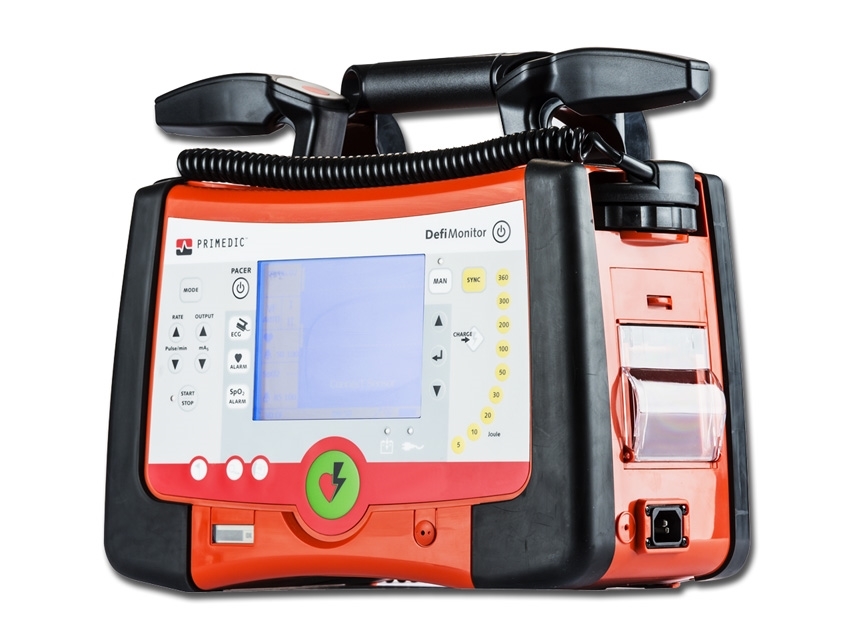

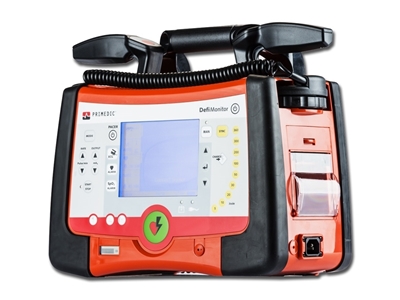

DefiMonitor XD1 DEFIBRILLATOR manual 1pcs

SKU: 35370

Price:

9516.65 €

Amount:

Qty: - +

Description

The sophisticated high performance instrument with multifunctional features.
It combines a compact product design, proved and tested in practice with the highest possible degree of safety and user friendly handling.

Range of 8 manual (XD1, XD3, XD10, XD30) or manual + AED (XD100, XD300, XD110, XD330) defibrillators with or without SpO2 and external pacer.

Supplied with adult/pediatric paddles, disposable adult Save Pads, connect cable, ECG cable, power cable, 1 tube gel, 1 paper roll.

Standard software: GB, FR, DE, IT, ES, KT, PT, RO, TR, CN.
Manual: GB, IT (on request DE, ES, PT, RU, UA).
Other softwares available on request: CZ, FI, HU, NL, NO, PL, RU, SE, DK, GR, LT, JU, AE, BR, CN, IR, JP, TH, US.

Size: 33 x 29 x 16 cm

Defibrillation
• Wave: biphasic, current controlled impulse
• Energy (automatic mode): 140-360 J
• Manual energy stages: 5J, 10J, 20J, 30J, 50J, 100J, 200J, 300J, 360J
• Charging time: < 6 sec for 200 J
• Cardio version: manual activation, QRS marker

ECG
• Derivation:
- Eindhoven I, II, III
- Goldberger, aVR, aVF, aVL
• Patient's resistance: 23-200 Ohm
• Heart rate: 30-300 per min

Thermal printer
• Resolution: 200 dpi
• Advance: 25 mm/s, 50 mm/s

TFT LCD blue-mode monitor
• 115 x 86 mm (diagonal 4.7"/120 mm)
• 320 x 240 pixels

Electrodes
• Adhesive electrodes, 3 years shelf life
• Cable length 3.5 m Save pads connect

Data backup
• Removable memory 512 MB
• Data/Voice recording > 90 h
• Data/Voice recording > 75 h

Power supply
• Voltage 90-264 V, 50/60 Hz

Rechargeable Lithium-ion battery (LiFePO4)
• Capacity 2.5 Ah Voltage: 14.4 V
• Discharges 150-200 J
• Monitoring 5 h Charging time: 2.5 h

Resuscitation guidelines
• Selectable AHA/ERC

Standards
• IEC60601-1:1988+A1:1991+A2:1995 (Electrical Safety of Med. Electrical Devices)
• IEC60601-1-2:2001 (Electromagnetic compatibility)
• IEC60601-1-4:1996+A1:1999 (Programmable electrical medical systems)
• IEC60601-2-4:2002 (Defibrillators)
• EN1789:2003 (Ambulance standard)
• Protection class IP33
