CHISON ECO5 COLOUR ULTRASOUND - 2 probe connector, 1 pc.

Description

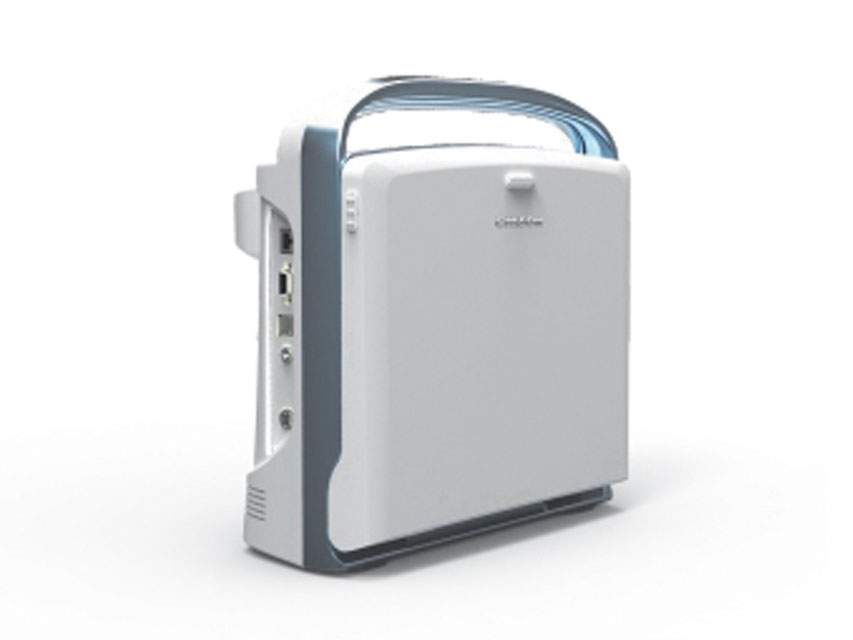

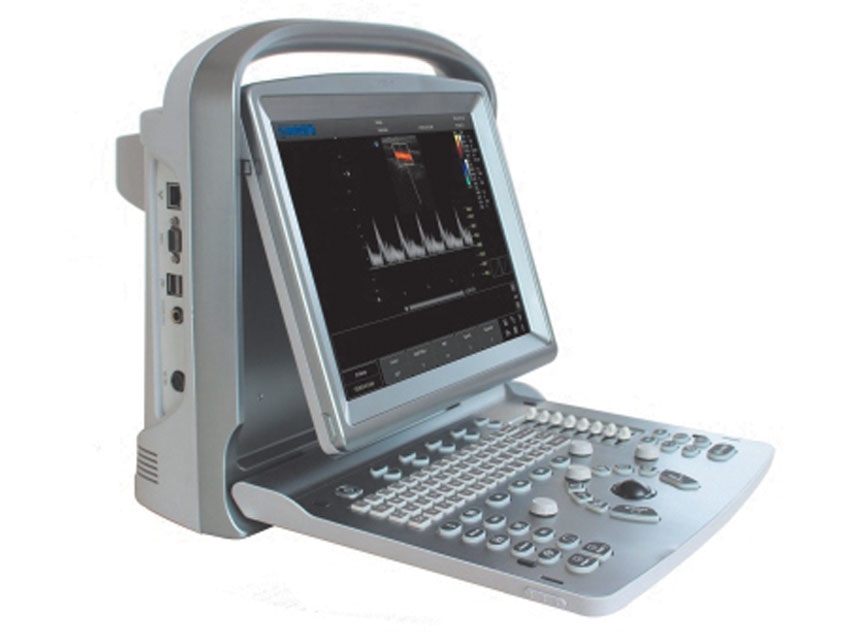

DIGITAL COLOUR DOPPLER CHISON ECO5 WITH 2 PROBE CONNECTORS (probes not included).

CHISON ECO5 Colour Doppler 12” high resolution colour LED monitor, 8G high speed memory, 3 USB ports, 2 probe connectors, EASYVIEW™ archive system, without probe.

Imaging model: B, B/B, 4B, B/M, M, CFM, PW

Imaging processing:
- MCI (Multiple Compound Imaging)
- trapezoidal
- i-image intelligent image optimization
- automatic PW trace
- THI (Tissue Harmonic Imaging)
- Chroma
- SRA (Speckle Reduction Algorithm)
- full screen display model
- full digital beam-former
- AIO (Automatic Image Optimization)

User interface
- fold-up control panel and alphanumeric keyboard
- back-lit keyboard for good visibility in dark room
- interactive back-lighting
- indicator lights identify activated keys
- 8 TGC slides for easy adjustment
- short cut knob for quick adjustment (hot key user- defined)
- neat and clear keyboard layout, doctor can remember easily
- user defined preset

Streamlined workflow, one key to:
- select desired application with automatic preset
- optimize the image automatically (AIO)
- Make report
- save still image and CINE loop
- Measure
- print to PC printer (laser or inject) or video printer

EASYVIEW™ Archive system:
- image archive on hard disk and USB mobile storage medium
- 3 USB ports
- multiple image formats: BMP, JPG, DCM, CIN
- cine review: auto, manual (auto review segment can be set) for 2D, M images
- cine memory capacity (256 frames/8s)
Technical Specifications
Dimension: 33.5x15.5xh 35 cm (13.2”x6.1”xh 13.8”)
Weight: 6.5kg
Display: 12” LED, high-resolution colour 1024x768
Power: AC 100-240 V, 50-60 Hz
Rechargeable lithium-ion battery
Standard accessories
12” high resolution LED colour monitor
8G memory card
Hot Key
PC printer connection
3 USB port
1 ethernet port
1 video out port, 1 VGA out port
1 footswitch port
Full screen diplay
2.5 hours rechargeable lithium-ion battery
Power adaptor
Standard software package
Easy View image archive system
THI
PW (doppler function to detect blood flow speed)
