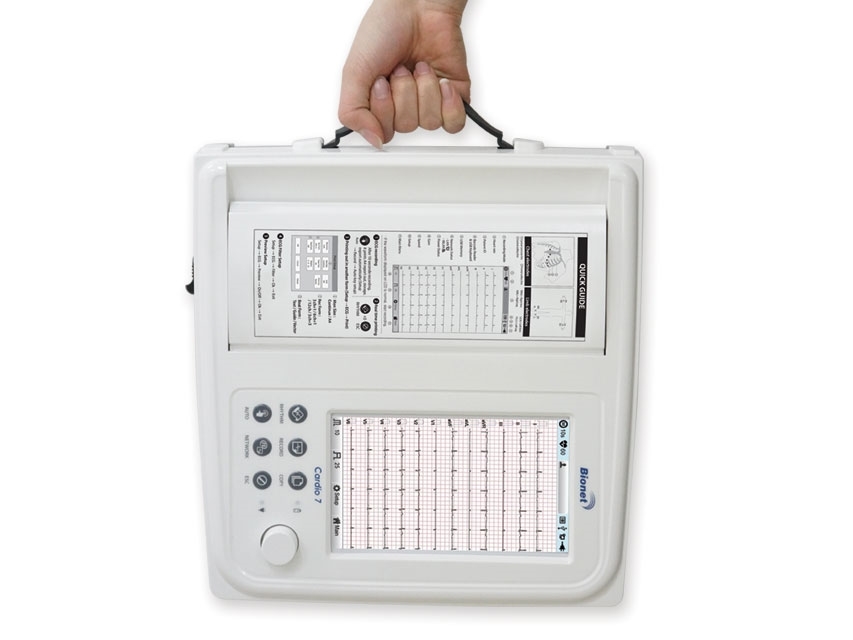

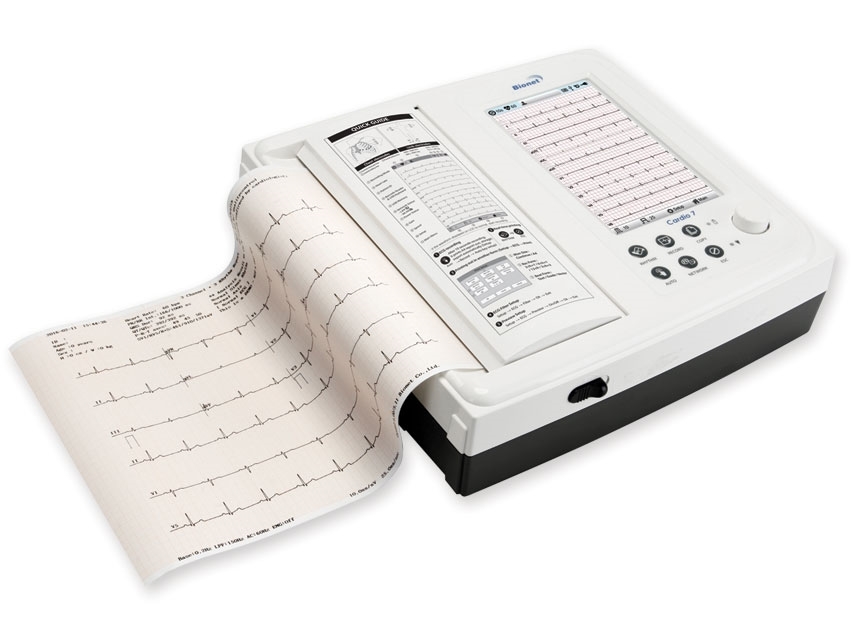

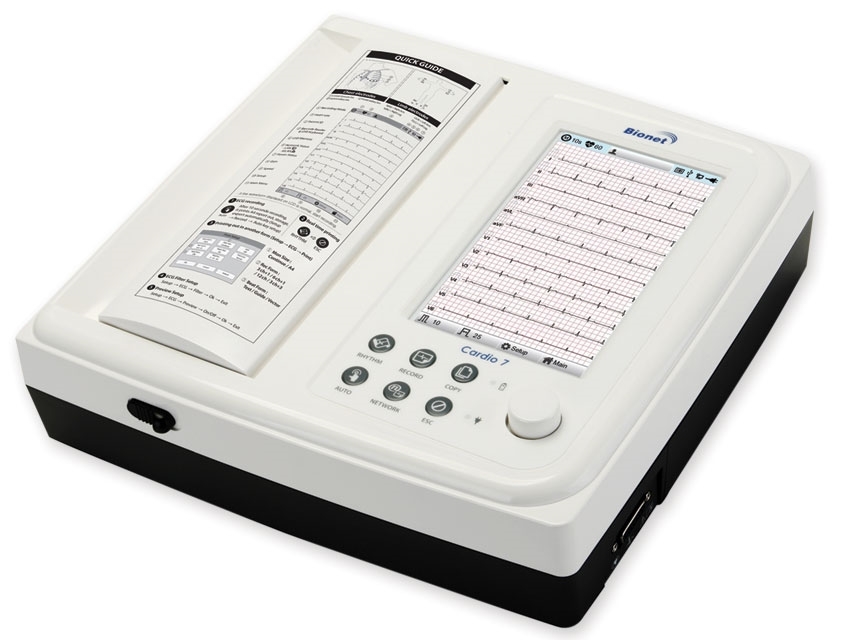

CARDIO 7 ECG 12 channel with Touch Screen, 1 pc.

Description

- 12 channel interpretive ECG for adult, pediatric and neonatal use
- over 130 kinds of interpretation results based on advanced Minnesota code, HRV (Hearth Rate Variability analysis)
- memory for up to 200 patients
- real-time preview monitor
- PC compatible through LAN or Wi-Fi
- multi-Ianguage selectable software (GB, RU, FR, DE, IT, CN, ES, TU, PL, RU, PT)
- lead fault message
- pace maker detection
- automatic arrhythmia detection
- 3, 5, 10 minutes long term recording
- grid function allows you to use low cost plain fax paper
- wide and clear colour 7” TFT LCD (800x480)

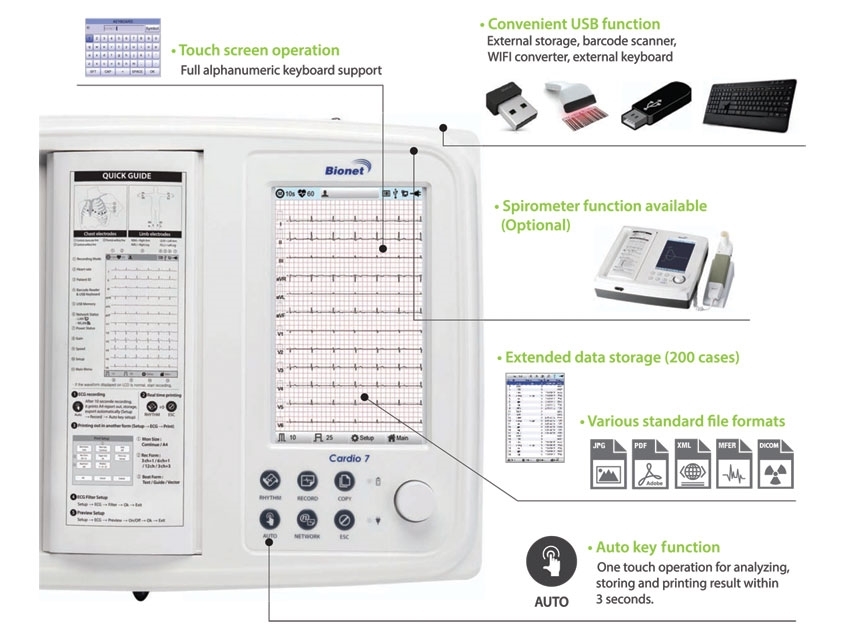

- touch screen for easy operation

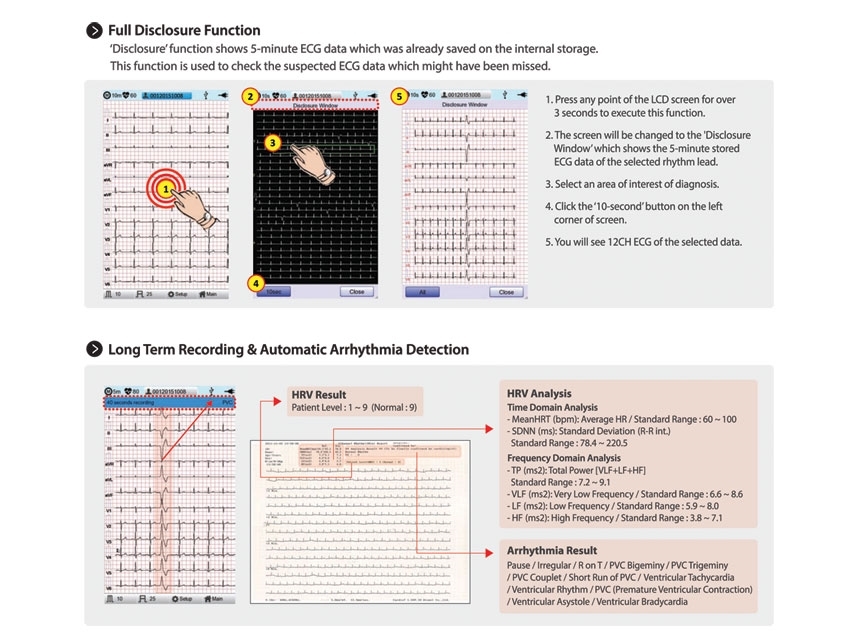

- full disclosure function
Technical Specifications
• ECG leads: 10 lead, 12 channel simultaneous ECG and acquisition
• Dimension: 300(W) x 299(H) x 123(D)mm, approx. 3.5 kg
• Recording channel: 3 channels + 1 rhythm, 3 channels + 3 rhythm, 6 channels + 1 rhythm, 12 channels, 60 seconds 1 channel, 3, 5, 10 minutes 1 channel and beat report
• Sensitivity: 2.5, 5, 10, 20, auto (l~aVF: 10, V1~V6: 5) mm/mV
• Printing speed: 5, 12.5, 25, 50, 100 mm/s
• Sampling rate: 2,000 samples/sec
• Filters: AC (50/60 Hz, -20 dB or better)
• Muscle (25~35 Hz, -3dB or better)
• Base line drift (0.05, 0.1, 0.2 Hz, -3dB or better)
• Low pass filter: off, 40 Hz, 100 Hz, 150 Hz
• Display: 7" color TFT LCD display (800x480), 12 channels preview ECG wave
• Monitor display: ID, date, sensitivity, speed, filter, form, rhythm lead
• User interface: Touch screen (alphanumeric and symbol available), Keyboard, rotary push-knob (pop-up menu)
• Patient data: ID, name, age, sex, height, weight, smoke, race
• Basic measurement: Heart rate, PR int, QRS dur, QT/QTc, P-R-T axis
• Recorder: Thermal print head, roll paper, A4 report paper: 210x300 mm (8.5"x11")
• Resolution:
- Vertical: 8 dot/mm
- Horizontal: 16 dot/mm
• Electrical:
- Internal noise: 20 µV (p-p) max
- Input circuit: floating input
- Input impedance: =50 MO
- Input voltage range: = ±5 mV
- Common mode rejection: > 105 dB
- DC offset voltage: = ±400 mV
- Time constant: 3.2 sec
- Patient leakage current: < 10 µA
- Frequency response: 0.05 ~150 Hz
- Isolated and defibrillation protected
• Signal quality control: Disconnected lead detection, Pacemaker pulse detection
• ECG data storage: storage for 200 ECGs (Internal on flash memory)
• Power: 100~240 VAC, 50/60 Hz or battery (option) 2.0~1.0 A, 60 VA max
• Battery (Li-Ion): 4 hours of normal use (approx.200 ECG printouts)
• Communication: PC connection with LAN D2 Wi-Fi
• Safety conformity: Class I, Type CF, CE, CSA, FDA, KFDA, CFDA, CCC
Standard accessories
• Patient cable - 10 leads
• LAN cable
• 1 bottle of ECG cream (70 g)
• 1 power cable
• manual (GB, IT)
• 1 paper roll
• 4 limb electrodes
• 6 chest limb electrodes
• EKG View Plus (GB, IT)
