Description

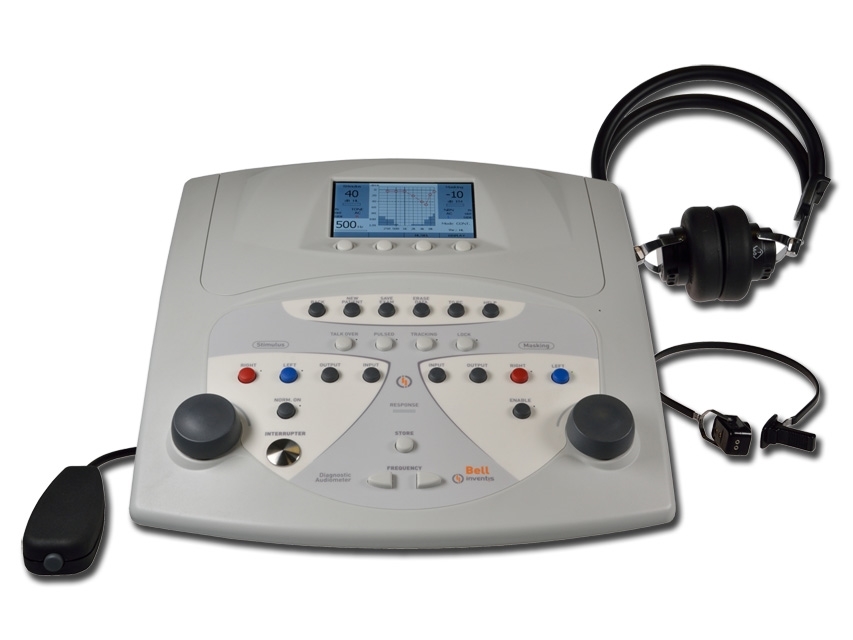

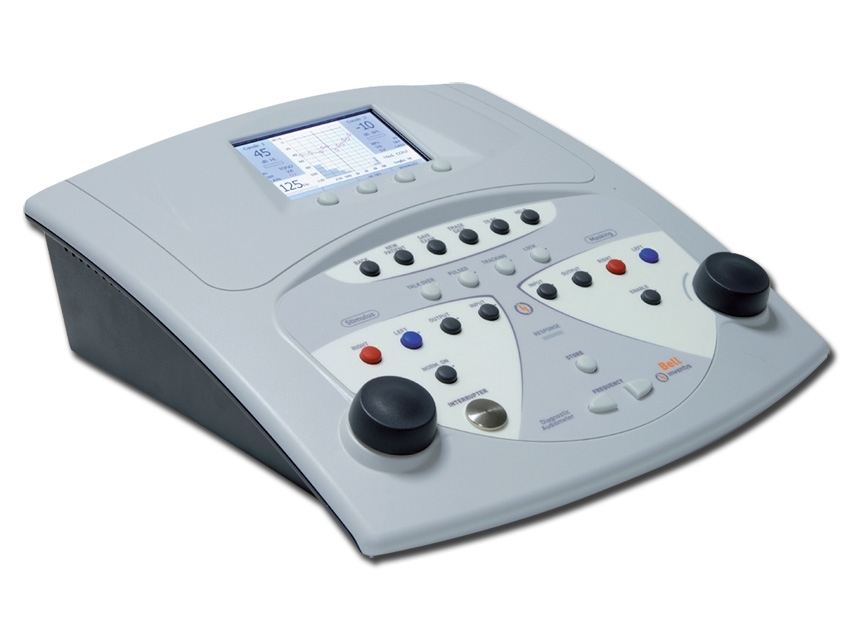

Bell is a basic diagnostic audiometer performing fast and accurate air and bone conduction threshold examinations. Simple operation, fast and reliable automatic examination mode, user-friendly interface and easy portability make Bell the ideal instrument for private clinics, multi-specialist clinics and occupational medicine application.
- Pure tone audiometry in AC and BC
- Hughsone-Westlake auto threshold test
- Colour graphic display·
- Internal memory for 100 patients
- Cost effective solution
- Supplied with air conduction phone and vibrator for bone conduction.
- Made in Italy
Manual: GB, FR, IT, ES, DE, PT.
Maestro Software interface: the Maestro module is the software interface of Bell Plus audiometer. When it is connected to PC via USB you can see real time progress of the exam on the display and then download the data. It also allows full control of the audiometer from computer.
Technical Specifications
• Type of device Hybrid audiometer
• Class (EN 60645-1, ANSI S3.6) 3 diagnostic
• Output AC, BC
• Masking NBN, WN
• Insert masking earphone Yes
• Warble tone Yes
• Pulsed tone 0.5 Hz, 1 Hz, 2 Hz
• Frequency range 125 - 8000 Hz
• Maximum output intensities
- AC: -10 to 120 dB HL
- BC: -10 to 80 dB HL
• Attenuator step 5 dB
• Automatic audiometry HW auto threshold
• Talk over Internal or external microphone
• Display type Colour graphic
• Display size resolution 4.3", 480x272
• Internal memory 100 patients
• Operating voltage 100-240 V, 50/60 Hz
• Dimensions 32x32x9 cm (12.6x12.6x3.5 in)
• Weight 1.8 kg (4.0 lbs)
• Compatible with Windows 7, 8, 10
Standard accessories
• TDH-39 supra-aural headphones
• B71 bone vibrator
• Patient response switch
• Plastic cover sheet
• Medical grade power supply
• User Manual
