SPIROLAB COLOUR SPIROMETER with 7" touchscreen, printer and software, 1 pc.

Description

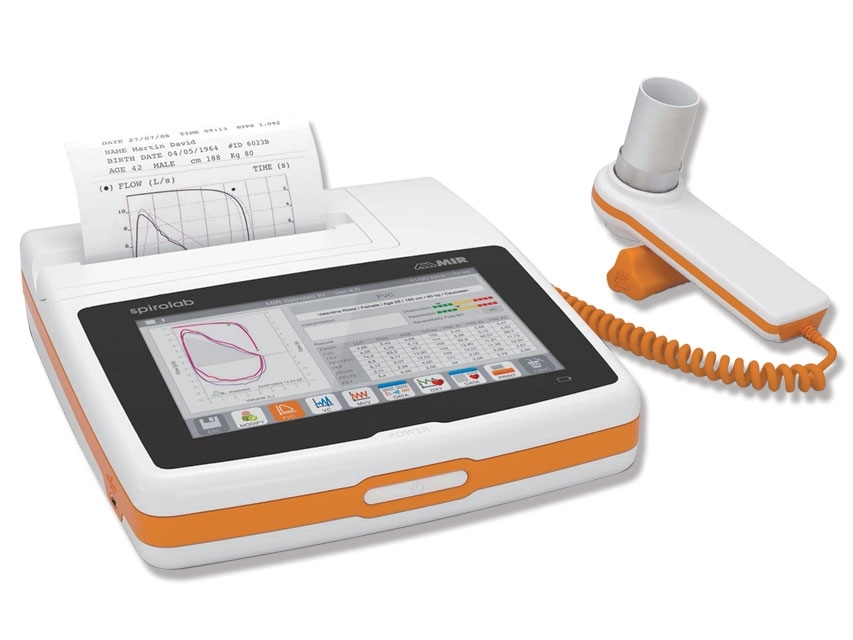

SPIROLAB® 7” touchscreen spirometer

Fast, simple, durable diagnostic spirometer, made in Italy.

Unbeatable features
- FVC, VC, MVV, PRE/POST Bronchodilator comparison with a wide range of selectable parameters
- long life rechargeable battery
- colour Touchscreen 7“ display
- direct connection to external USB Printer PostScript
- 10,000 Spirometry tests
- wireless Real Time test on PC via Bluetooth®

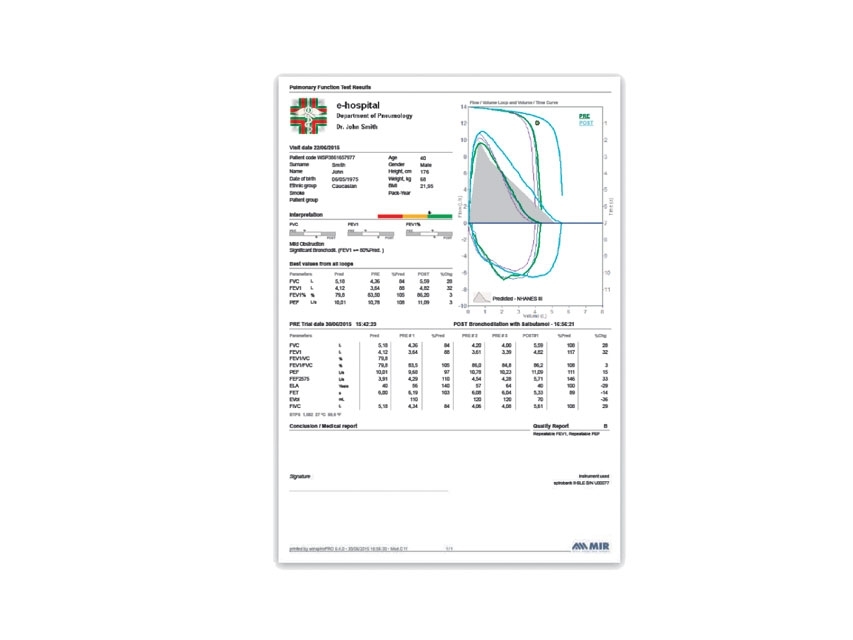

- fast and silent built-in printer with customizable printout format
- selectable internal software languages: GB, FR, IT, ES, DE, PT

Flow MIR® disposable flowmeter complies with ATS/ERS standard

Guarantees 100% hygiene, no cross contamination.
No calibration required.
Suitable also for pediatric use without need of adaptor.

Suitable for children.
Patented pediatric incentive directly on the screen.

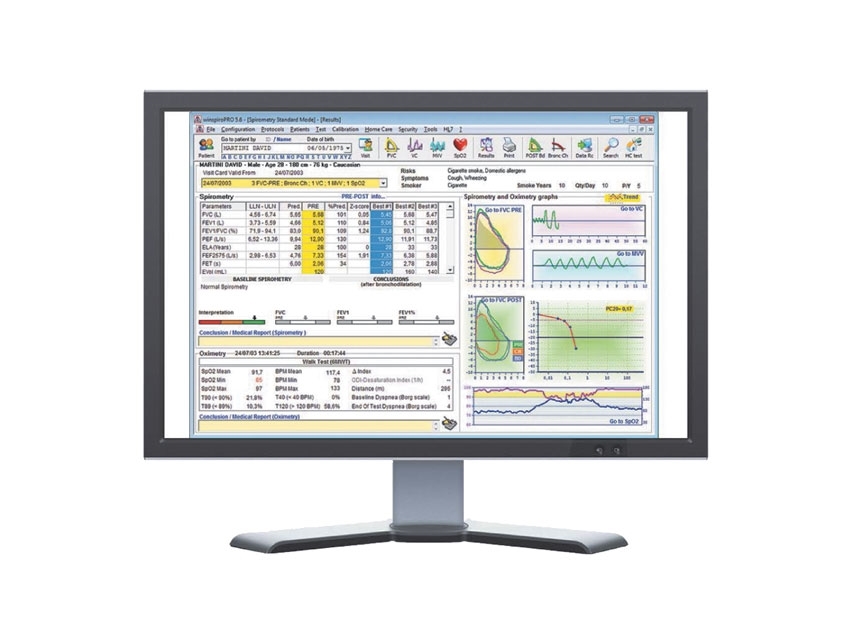

Winspiro PRO®
High perfomances PC software for spirometry and oximetry.
Multilanguage software: GB, FR, IT, ES, DE, PT, PL, NL, LV, SE, CZ, RU, TR, JP, CN.
Technical Specifications
SPIROMETRY SPECIFICATIONS:
- Power supply: Rechargeable battery
- Autonomy: approx. 10 hours
- Temperature sensor: semiconductor (0-45°C)
- Flow sensor: bi-directional digital turbine
- Flow range: ±16L/s
- Volume accuracy: ±3% or 50mL
- Flow accuracy: ±5% or 200mL/s
- Dynamic resistance: <0.5 cm H2O/L/s
- Connectivity: USB 2.0, Bluetooth® 2.1
- Display: 7” colour touch screen LCD, 800x480 resolution
- Mouthpieces: Ø 30 mm (1.18 inch)
- Dimensions: 220x210x51 mm (8,66x8,26x2“)
- Weight: 1450 g (battery pack included) (3,1lb)
- Electrical protection: Class II
- Norms: Electrical safety standard EN 60601-1
- Electromagnetic compatibility EN 60601-1-2
- Spirometry parameters: FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF75-85, Lung Age, Extrapolated Volume, FET, Time to PEF, FEV0.5, EV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/ FEV6, FEV1/PEF, FEV1/FEV0.5, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50, VC, IVC, IC, ERV, IRV, Rf, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV (calculated).

WINSPIRO PRO® SOFTWARE REQUIREMENTS: Windows 2000, Xp, Vista (32/64 bit), 7 (32/64 bit), 8 and 8.1 (32/64 bit), 10 (32/64 bit). RAM 512 MB
Standard accessories
- Carrying case
- Software Winspiro PRO®
- Battery charger
- USB port and cable
- 1 roll thermal paper
- Reusable turbine
- Nose clip
- CD manual: GB, FR, IT, ES, DE, PT
