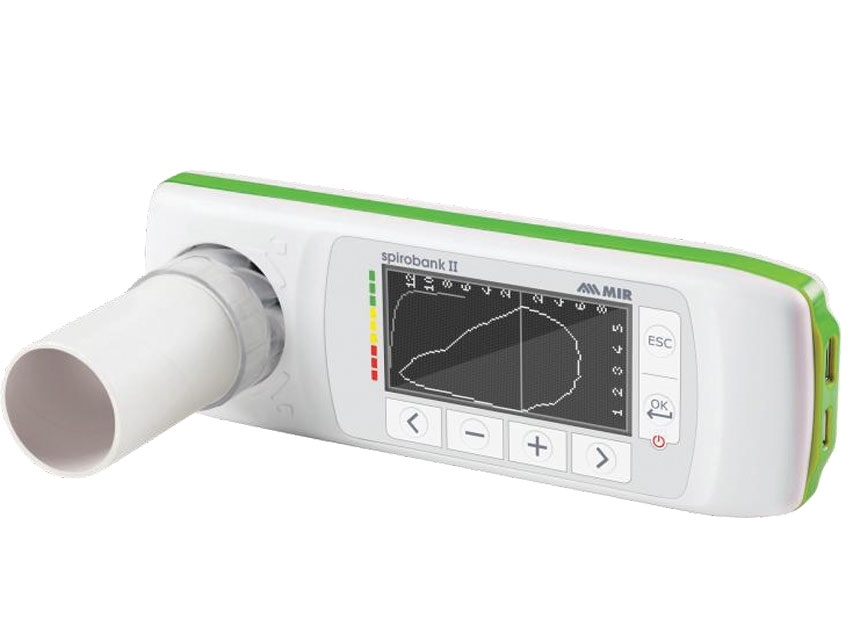

SPIROBANK II BASIC + SOFTWARE, 1 pc.

Description

SPIROBANK II BASIC + WINSPIROPRO software

Complete and rapid pocket spirometer for the General Practitioner to carry out spirometry testing anywhere.
No calibration required, use disposable turbine FlowMIR with integrated mouthpiece (33507) or reusable turbine (33526).

- measures the most important spirometric parameters including: FVC, VC, IVC, IC, ERV, FEV1, FEV1%, PEF, FEF 25-75, FET, EVOL, TEST POST BD
- traffic lights for immediate test interpretation
- memory up to 10,000 tests
- rechargeable long life battery (40 hours continuous operation)
- real time tests via USB
- selectable display language and CD manual (GB, IT, ES, FR, DE, PT)
Supplied with Winspiro PRO software, USB cable, 1 disposable turbine in a carriying bag.

WinspiroPRO software functions: (PC system requirements: XP, Seven, Vista, 8, 10)
- Languages: GB, FR, IT, DE, ES, PT, PL, SE, NL, LV, CZ, TR, RU, CN, JP
- on-line PC connection with icon interface
- real time Flow/Volume and Volume/time curves
- bronchial challenge with FEV1 dose-response
- paediatric incentive animations
- integration with EPR systems
- Lung Age Estimation
- data and graphs export also via e-mail

System requirements: Microsoft Windows Vista, 2000, XP, ME, Seven, 8, 10
Weight 140 g including battery
Size 55 x 160 x 25 mm
Technical Specifications
• Power supply: 3.7 V, 110 mA lithium battery, USB rechargeable
• Keypad: 6-key membrane keyboard
• Display: LCD monochrome 160x80 pixel
• Flow range: + 16 l/s
• Flow accuracy: ± 5% or 200 ml/s whichever is greater
• Max volume: 10 l
• Volume accuracy: ± 3% or 50 ml whichever is greater
• Data transmission: USB 2.0
• Made in Italy
