SPENCER ELECTRONIC VENTILATOR 170, 1 pc.

Description

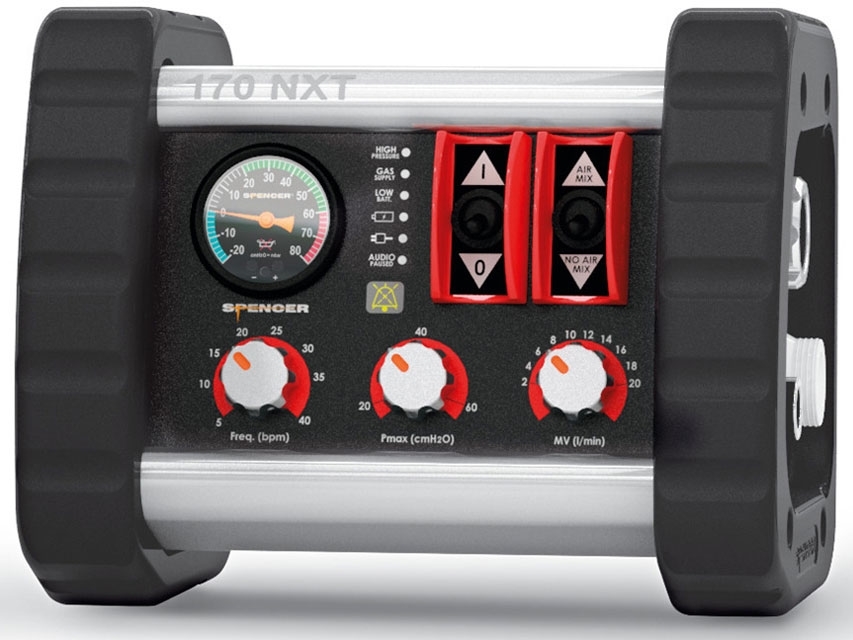

SPENCER 170 NXT ELECTRONIC VENTILATOR

Electronic lung ventilators for non invasive ventilation of adult and pediatric patients

- protection against accidental activation of the AIR mix selection lever
- colour coded manometer for easy identification of pressure ranges
- positioning of input and output ports on the side of the device, make connecting and disconnecting easier and offer greater protection to the elements connected to the device
- control knobs on high contrast background for a better identification of the set values
- compact, lightweight aluminium frame
- place and shape of adjustment knobs make the setting of parameters easier in all operative conditions
- constant I/E ratio
- alarms for ventilation monitoring and device management

Made in Italy.
Technical Specifications
• Drive: Electronic
• Frequency: from 5 to 40 BPM
• Alarms:
- High pressure
- Pneumatic supply
- Low battery
• Flow: 2 to 20 l/min
• I/E Ratio: 1:2
• Oxygen concentration: 60% or 100% Patented system
• Overpressure valve: 20-60 cm H2O - adjustable
• Battery operating time: Approx. 3 hours
• Manometer scale: -20 to +80 mbar
• IP protection: IP24
• Non re-breathing valve: 60 cm H2O
• Pneumatic supply: from 280 to 600 kPa
• Pneumatic connection: UNI
• External source: 12 V DC (on request AC/DC adapter 100-240 V, 50/60 Hz)
• Internal source: Rechargeable Ni-Mh battery
• Dimensions: 270x177x210 mm
• Weight: 3.5 kg
• Structure: Aluminium, steel, brass, PE
Standard accessories
• Patient circuit (corrugated tubing with non re-breathing valve)
• Power cable
• Oxygen tube
• Manual: GB, IT, on request FR, ES, DE, PT
• Adult face-mask
• Battery
• UNI adaptor
