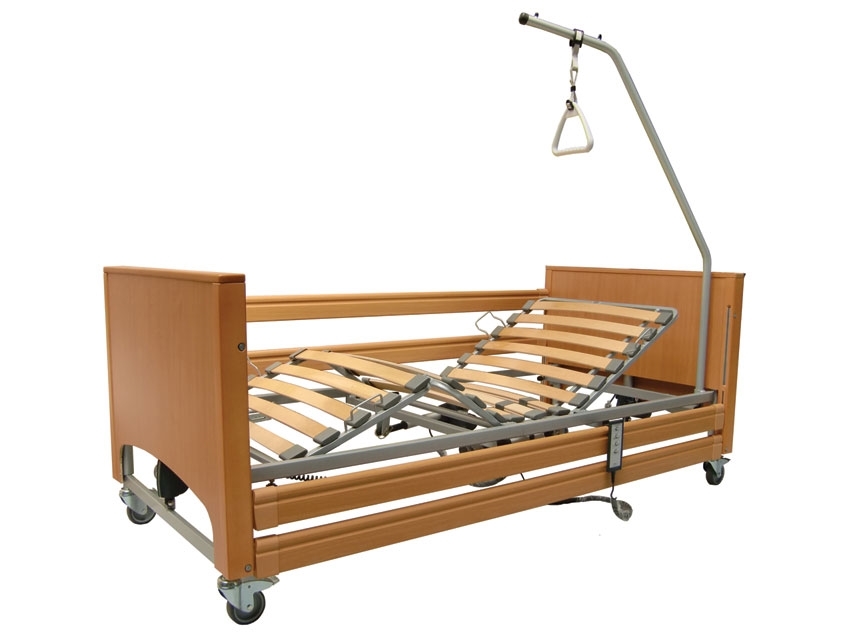

SPECIALIST BED 3 JOINTS/4 SECTIONS - electric with Trendelenburg, 1 pc.

Description

Three-joints, four sections bed with adjustable height from 40 to 80 with full electrical movements.
All welded mainframe made of rectangular steel tube 50 x 25 x 2 mm.
Mattress platform with flexible wooden staves, complete with mattress-hold guides.
Backrest-section and leg-section adjustable by means of two independent electric motors 24V D.C. and push-button.
Foot-section adjustable by means of a rack device. Fixed pelvis-section.
Removable head and foot-end frames made of natural beech finish wood with solid corners and edges.
Comes complete with 2 vertical sliding bars with upper/lower lock/unlock keys and lifting pole.
Legs fitted with 4 castors Ø 100 mm with independent brake.

Technical Specifications

• Size of platform: 900 x 2000 mm
• Platform height: 400-800 mm
• External measures: 1030 x 2140 mm
• Height of bed end from mattress platform: 50 mm
• Max. load: 135 kg
• Weight: 102 Kg
• Operating power: 230V - 50 Hz
