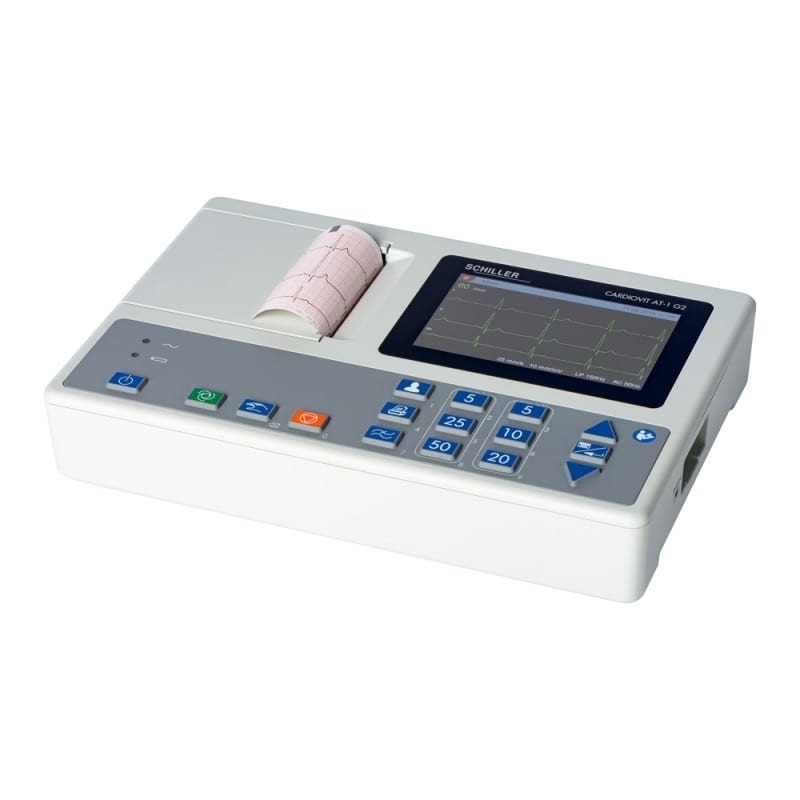

Schiller Cardiovit AT-1 G2 ECG Machine without Interpretation

Description

The Schiller Cardiovit AT-1 G2 is a 12-lead resting ECG machine that offers excellent ECG signal quality thanks to the high sample rate and wide frequency range. The signal preview and quality control are done in real time; misplaced electrodes are automatically recognised by the Schiller ECG machine. This effectively prevents false recordings.The ECG device from the manufacturer Schiller also features built-in pacemaker detection.

Another advantage of the Schiller Cardiovit AT-1 G2 is the great user friendliness and intuitive operability. For example, this allows patient data to be entered at the touch of a button.

All 12 leads (4 x 3) can be observed on the display of the Schiller Cardiovit and the ECG results can be immediately printed, using the integrated thermal printer. Optionally, it is also possible to transfer the ECG measured values in PDF format via USB stick, enabling paperless documentation of medical data.

The Schiller ECG unit is supplied with the following accessories: Recording paper, 10-wire patient cable, 4 clamp electrodes, 6 chest suction electrodes, 6 press stud adapters and 100 adhesive electrodes.

Product Details

• Model: Cardiovit AT-1 G2
• 12-lead resting ECG machine
• 5 inch colour LCD display
• Signal preview and quality control in real time
• Automatic recording (10 seconds)
• Simple, intuitive operation
• Displays all 12 leads (4 x 3)
• Pacemaker recognition
• Recognises misplaced electrodes
• Mains and battery operated
• 4 hours of continuous use with fully charged battery
• Integrated 3-lead thermal printer
• Internal storage for up to 100 ECGs
• Data transmission as PDF via USB drive possible
• Easy to clean keyboard
• Automatic shutdown (11 minutes without activity)
• 1 year warranty
• Dimensions: 28.5 x 18.9 x 6.1 cm (H x W x D)
• Weight: approx. 1.94 kg (incl. thermal paper)
• The following languages can be selected: German, Dutch, French, English, Polish, Spanish and Italian
• Device optionally available with interpretation

Delivery Contents

• Schiller Cardiovit AT-1 G2 ECG machine with accessories:
• Register paper

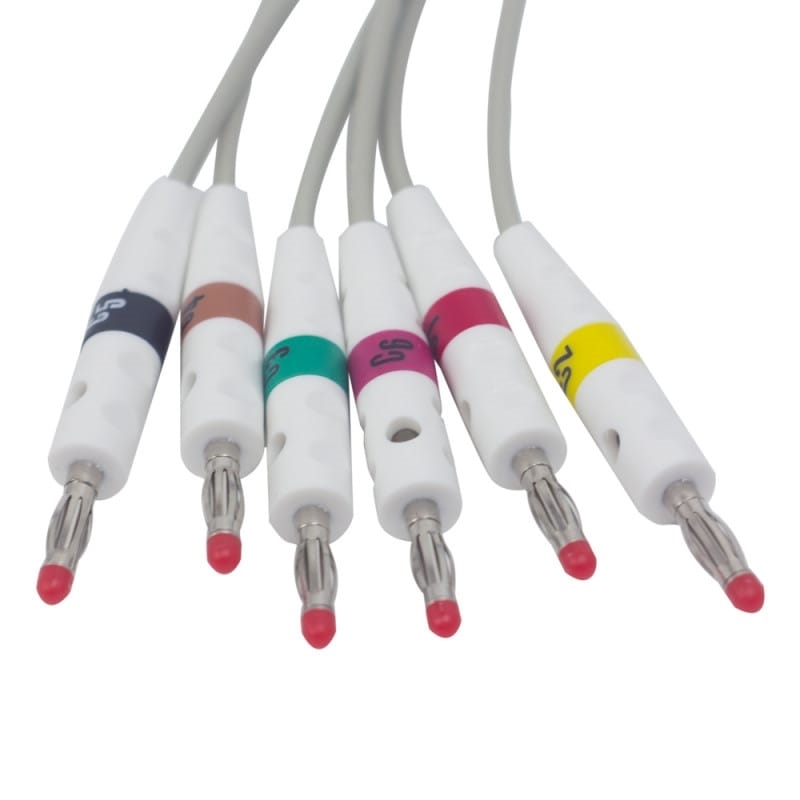

• 10-wire patient cable

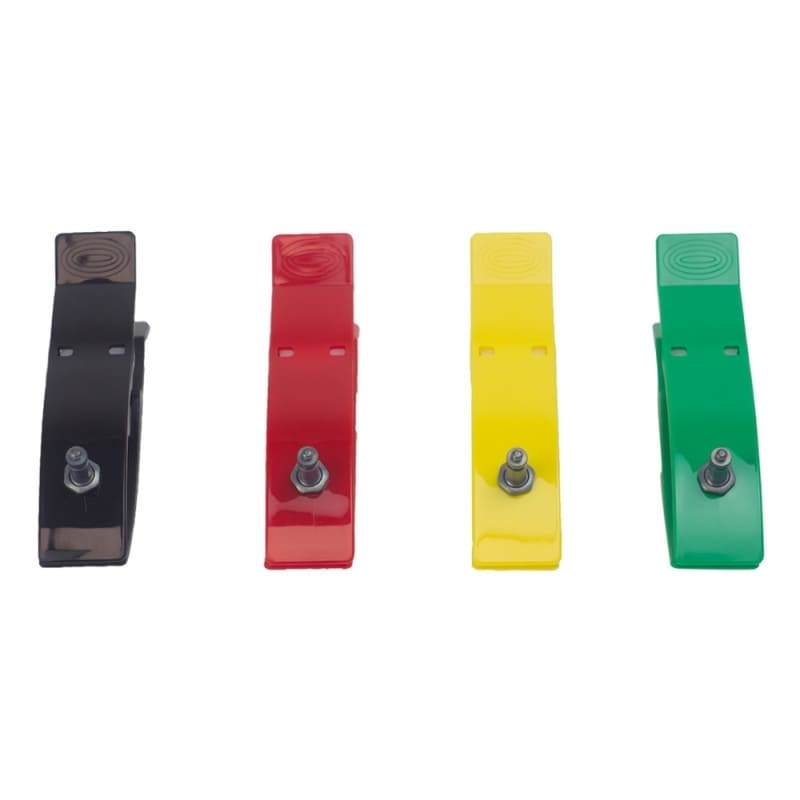

• 4 clamp electrodes

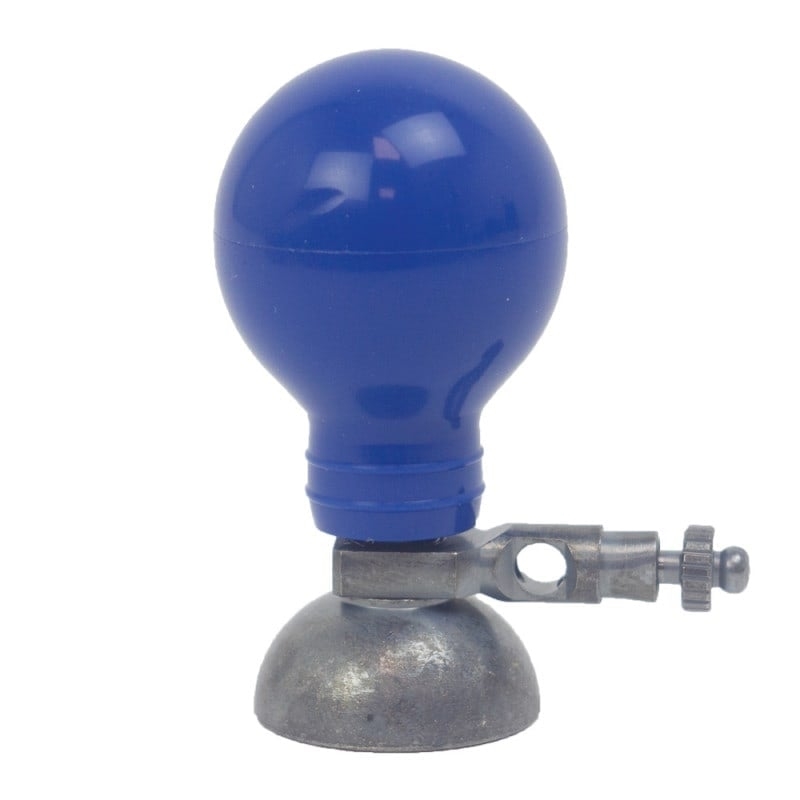

• 6 chest suction electrodes
• 6 press stud adapters
• 100 adhesive electrodes
