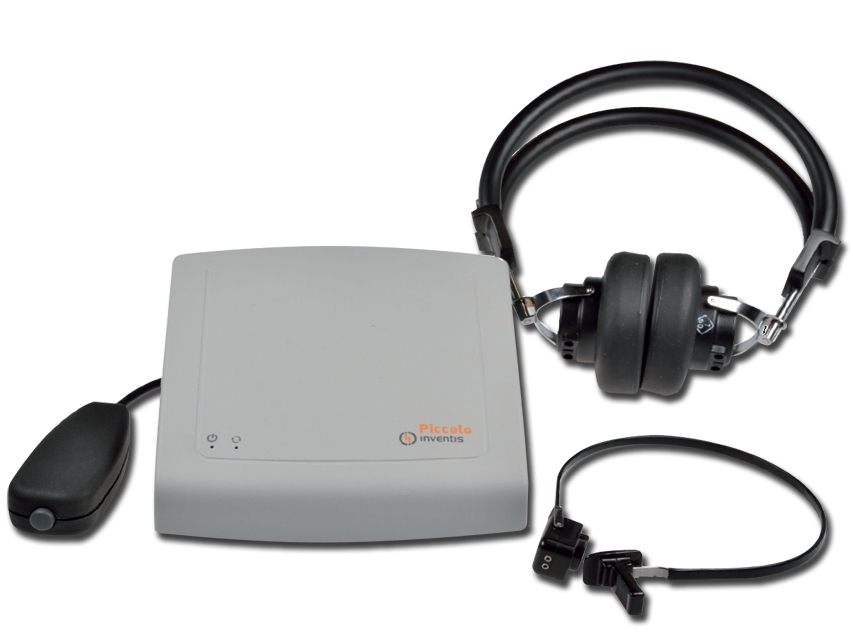

PICCOLO PLUS DIAGNOSTIC AUDIOMETER - air+bone+mask, 1 pc.

Description

Piccolo is a basic diagnostic audiometer offering air, bone and speech audiometry functions.

Piccolo can be controlled either from a computer running Windows or, for the fi rst time ever, from an iPad®.

Lightweight, compact design, powerful, user-friendly software and Noah connectivity combine to make Piccolo the ideal choice for professionals on the move.

-Three different models available:
- Basic (AC only) for Pc use
- Plus (AC/BC) for Pc or Pc-iPad® use (Aero version)
- Speech (AC/BC/Live Speech) for Pc-iPad® use

- iPad® control (includes Aero option, 33616, 33618 only) through the Maestro App. Wireless Bluetooth connectivity
- computer control through the dedicated Noah or Daisy module. USB connection port. Compatible with Windows 7, 8, 10.

- small and light weight
- power supply through the USB connection, when controlled by computer.
Made in Italy.

Software language: GB, FR, IT, ES, DE, PL, PT, RU.
CD manual and quick guide GB, FR, IT, ES, DE, PL, PT, NL.
Technical Specifications
• Type of device: PC control
• Class EN 60645-1, ANSI S3.6: 3-diagnostic
• Output: AC,BC
• Masking: NBN
• Warble tone: Yes
• Pulsed tone: 0.5 Hz, 1 Hz, 2 Hz
• Frequency range: 125 - 8000 Hz
• Maximum output intensities:
- AC: -10 to 120 dB HL
- BC: -10 to 80 dB HL
• Attenuator step: 5 dB
• Automatic audiometry: HW auto threshold
• Speech audiometry: No
• Speech inputs: -
• Talk over: External microphone
• Connection to PC: USB [driverless]
• Controlling software: Daisy or Noah with Maestro module
• Connection to iPad: -
• Controlling app: Maestro (App Store)
• Size 16 x 16 x 3 cm (16.3 x 6.3 x 1.2 in)
• Weight: 300 g (10.6 oz)
• Operating voltage: 100-240V, 50/60 Hz
Standard accessories
• TDH-39 supra-aural headphones
• B71 bone vibrator
• Patient response switch
• Clip-on microphone for operator to-patient communication
• Inventis Daisy Patient Record Manager, with Daisy Maestro module
• Noah Maestro module
• USB connection cable
• Medical grande power supply
• User Manual
