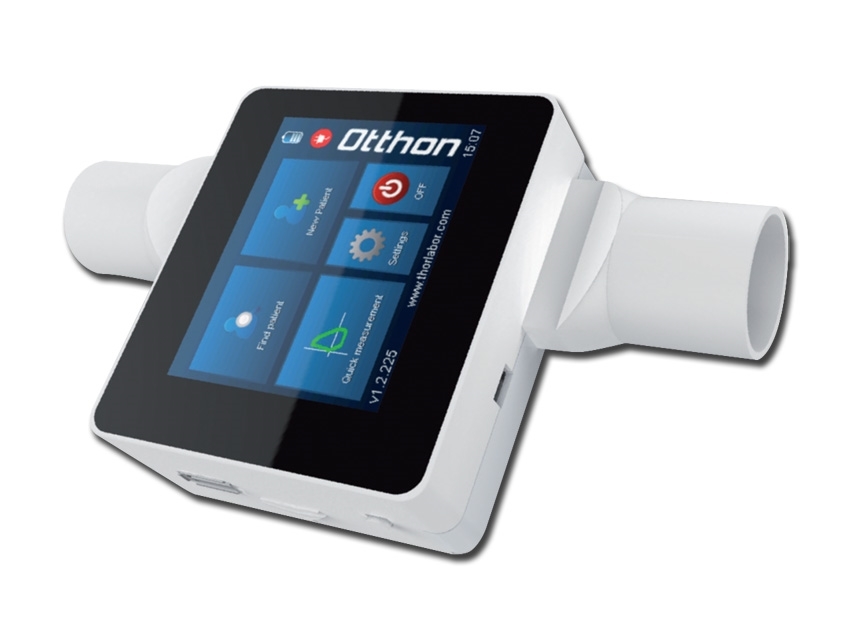

OTTHON SPIROMETER US (English) + SOFTWARE, 1 pc.

Description

Pulmonary function diagnostics and monitoring spirometer for use by general practitioners, respiratory physicians and patients.
Compact, mobile, affordable solution for screening COPD (Chronic Obstructive Pulmonary Disease) and asthma.

- automated diagnostic interpretation
- voice and video explain use of device and communicate results
- battery or USB charger
- touchscreen, bright colour high resolution LCD display QVGA (320x240 px), 16 M colours
- external printer connectivity
- automatic internal calibration
- fl ow tube disinfectable by cold sterilization
- power supply: USB 5 V or built in rechargeable batteryInternal

software languages: GB, FR, IT, DE, ES, HU, AU, HR.Voice languages available: US (English), AU, FR, IT, DE, ES, AT, HU. Please indicate requested language with order.
Made in Europe.

Size: 35 x 120 x 120 mm
Weight: 300 g

REGISTRATIONS
All spirometers are CE marked and registered in Indonesia, Singapore, Hong Kong, Australia, New Zealand, Korea, Saudi Arabia.

THORSOFT - PULMONARY DIAGNOSTIC PC SOFTWARE
Standard medical interfaces (HL7, GDT, BDT, XML). Automatic interpretation module. Diagnostic decision support system (for general practitioners and physicians) Complete stress testing procedure Languages: GB, FR, IT, DE, ES, SE, TR, RO, HU, SL, CZ, HR, NL, KR, CN.
Technical Specifications
• Flow measurement principle Idegen™ multiple-path
• Flow tube: Ø 30 mm (OD)
• Dead space 16.8 ml
• Flow resolution 8 ml/s
• Flow precision 3%
• Flow range ±18 l/s
• Connection to PC USB
• Size: 35 x 120 x h 120 mm
• Weight: 300 g

MEASURED PARAMETERS
- FVC, -FEV*0.5, FEV*0.5/IVC, FEV*0.5/FVC,FEV*1.0/IVC, FEV*1.0/FVC, PEF, FEF*25-75%, MEF*75%,MEF*50%, MEF*25%, FET, MTT, FIVC, FIV*0.5, FEV1/FVC (Tiffeneau index) FIV*1.0, PIF, FIF*25-75%, IRV. ERV, TV, Breath rate value
- Insp./Expi ratio: Fro 1:10 a 10:1
Standard accessories
• Thorsoft software
• Plastic muthpieces
• Mini USB cable
• Cups for disinfection
• Battery charger
• Bacterial filter
• Carrying bag
• Paper manual (GB)
• CD manual (GB, IT, ES, DE, HU)
