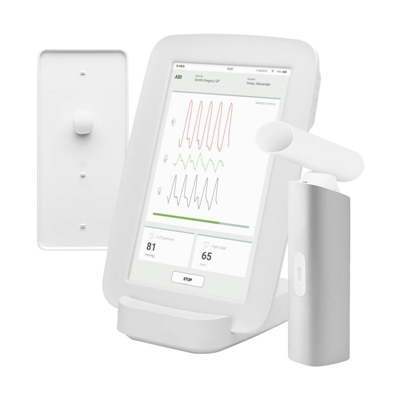

MESI mTablet SPIRO

Description

The MESI mTablet SPIRO is a digital, tablet-based spirometer that offers a wide range of examination, reporting and viewing options. Thanks to the wireless, battery-powered spirometry module, the mTablet SPIRO offers a high degree of flexibility and can also be used on the move without any problems.

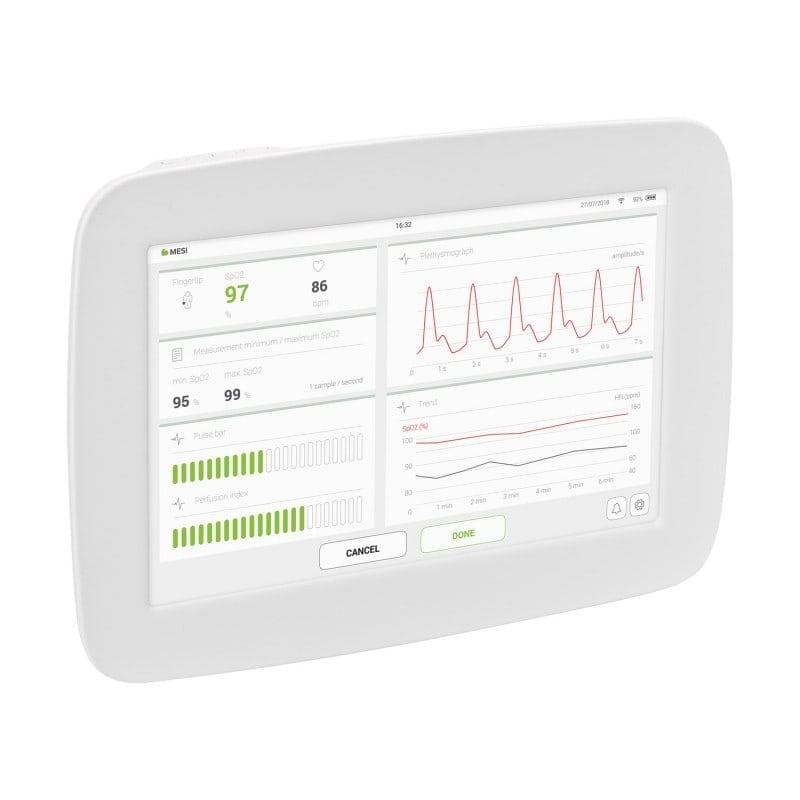

The pneumotachograph automatically selects and evaluates the best breath with the help of BestBreath™ detection. The tablet's display not only shows an animated flow-volume curve in real time, but also the temperature, humidity and air pressure.

The MESI mTablet SPIRO has an integrated self-calibration feature that ensures precise measurement results at all times. With the help of MESI mRECORDS, different measurements can be compared directly on the screen and thus the patient's course of disease can be evaluated.

Maximum hygiene is ensured by the separately available accessories in the form of disposable mouthpieces and disposable filters, which effectively prevent the transmission of infection from one patient to the next.

With the help of different modules and expansion packages, the MESI mTablet SPIRO can be individually expanded to include various diagnostic options, such as ABI measurement, ECG, SpO2 or blood pressure measurement.

Product Details

• MESI mTablet SPIRO
• Pneumotachograph
• Integrated self-calibration
• Precise measurement results
• Automatic selection of the best breath (BestBreath Detection)
• Real-time display of temperature, humidity and air pressure
• Warning messages in case of malfunctions or incorrectly performed tests (coughing, dropping the mouthpiece, etc.)
• Primary spirometry is included as standard in the package
• Quick spirometry and advanced spirometry are available as separate, chargeable app packages
• Clear and intuitive overview of measured values
• Detailed report with the option to switch between charts and values
• Option to compare different measurements on one screen (with MESI mRECORDS)

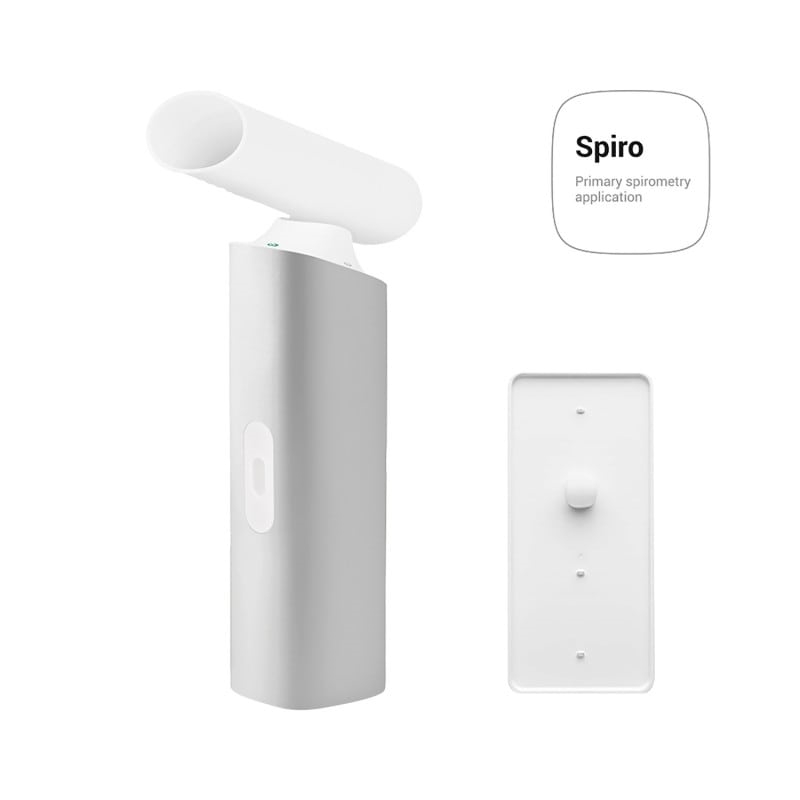

• Wireless module for maximum flexibility
• Also suitable for mobile use
• Individually expandable with various diagnostic modules and extension packages
• Hygienic disposable mouthpieces and disposable filters are available for the mTablet SPIRO

Technical Details

• With high-performance lithium-polymer battery
• Approx. 150 examinations or 4 hours of continuous use with one battery charge (module)
• Interfaces: DICOM, HL7, XML, GDT, JSON
• Protection class: IP30
• Display resolution: 1280 x 00 px IPS
• Internal tablet memory: 8 GB
• Connectivity: Wi-Fi, Bluetooth
• Equipped with a mono speaker and a 5 MP camera
• Charger dimensions and weight: 40 x 20 x 3.8 cm, 675 g
• Module dimensions and weight: 4 x 4 x 1.4 cm, 220 g
• Complies with EN 60601-1, EN 60601-1-2 and EN ISO 26782
