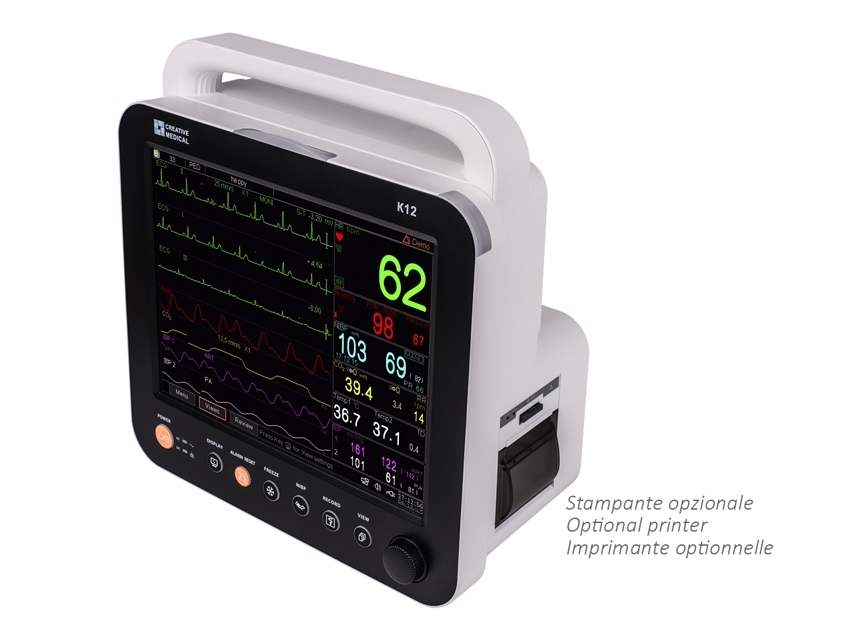

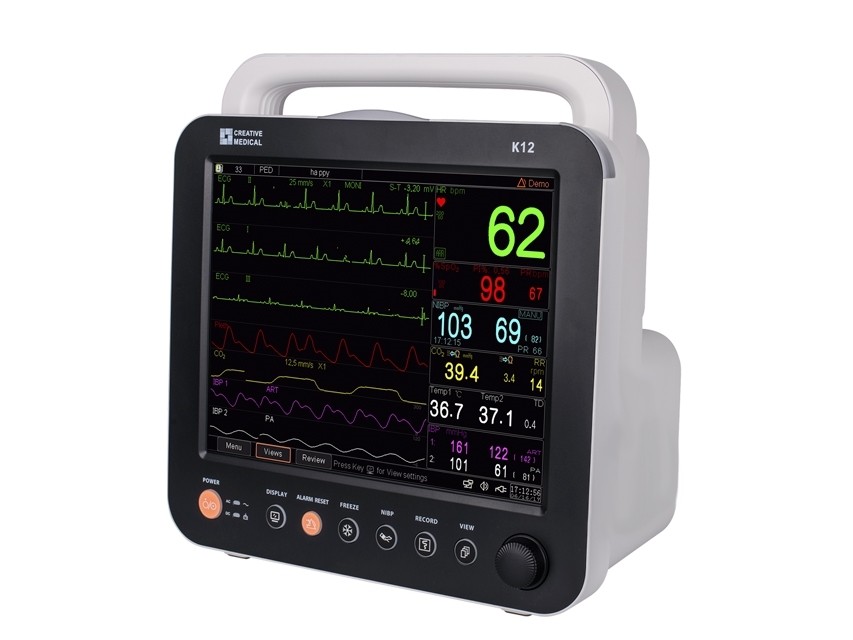

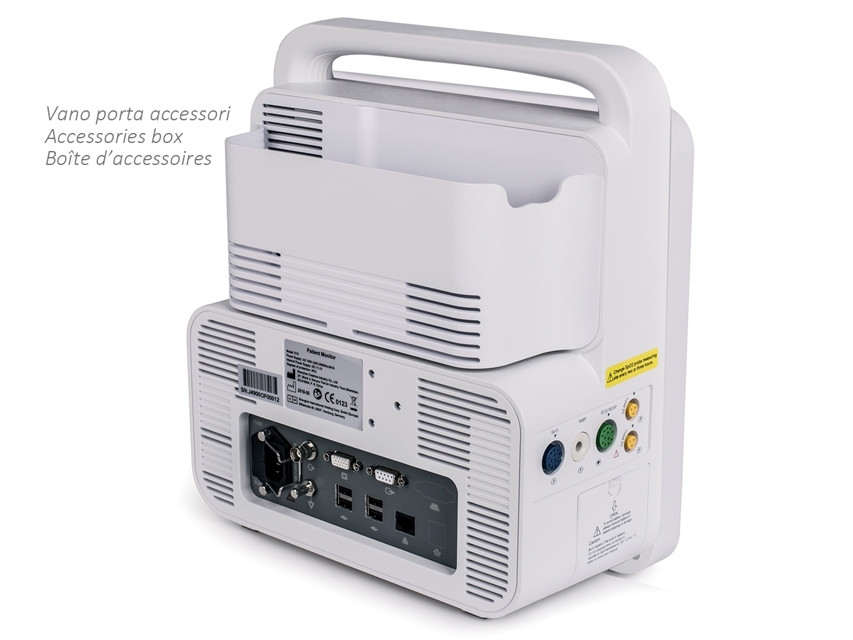

GIMA K12 TOUCHSCREEN MULTIPARAMETER MONITOR, 1 pc.

Description

K12 TOUCHSCREEN MULTIPARAMETER MONITOR 12"

Multi-functional patient monitors, designed for monitoring the vital physiological signs of adult, pediatric and neonate patients.

With the functions of real-time recording and displaying parameters, such as ECG, heart rate (HR), non-invasive blood pressure (NIBP), oxygen saturation (SpO2), respiration (RESP), temperature (TEMP), it allows comprehensive analysis of patient's physiological conditions.

- ergonomic design with intuitive user interface
- USB socket for data transfer and software upgrade
- 9 traces on-screen waveforms
- Windows style display view, easy to operate
- visual and audible alarm for physiological and technical alarms
- large capacity storage
- suitable for use with original Nellcor sensors
- protection against defibrillator discharge, resistance against the interference from electro-surgical unit; cardiac pacemaker pulse detection and inhibition.

Internal software: GB, DE, FR, PT, ES, IT, PL, TR, RU.
PC software only GB.

360° degree visible indicator with 3 level alarm.
Lithium battery up to 2.5 hours continuous monitoring.
Technical Specifications
ECG
• Input dynamic range: ±(0.5~5 mVp)
• Differential input impedance: =10 mO
• Bandwidth:
- 0.05~150 Hz (diagnostic)
- 0.5~40 Hz (monitoring)
- 1~20 Hz (operation)
• CMRR:
- =90 db (diagnostic)
- =105 db (monitoring & operation)
• Sensitivity selection: ×1/4, ×1/2, ×1, ×2, ×4 and Auto
• Sweeping speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
• HR measuring range: 15~350 bpm ±1% or ±2 bpm, whichever is greater
• Pacemaker pulse detection and rejection function

RESP
• Measuring range: 0~120 rpm ±5% or ±2 rpm, whichever is greater

TEMP
• Measuring range: 21.0~50.0 °C ±0.2 °C from 25~45 °C

NIBP
• Technique: oscillometric method
• Typical measurement time: <30 seconds (adult cuff)
• NIBP measuring range SYS:
- 40~275 mmHg (Adult)
- 40~200 mmHg (Pediatric)
- 40~135 mmHg (Neonate)
• NIBP measuring range DIA:
- 10~210 mmHg (Adult)
- 10~150 mmHg (Pediatric)
- 10~95 mmHg (Neonate)
• NIBP measuring range MAP:
- 20~230 mmHg (Adult)
- 20~165 mmHg (Pediatric)
- 20~110 mmHg (Neonate)
• NIBP measuring accuracy:
- Mean difference: ±5 mmHg
- Standard deviation: 8 mmHg
• NIBP measurement mode: Manual, Auto, Stat, Multi-cycle mode
• Auto measuring intervals: 1-480 min

SpO2
• Technique: Dual-wavelength optical method
• Measuring range: 0%~100% ±2% for Spo2 range 70~100%
• PR measuring range: 30~250bpm ±2bpm or ±2%, whichever is greater
• Low perfusion performance: as low as 0.3%.

CO2
• Technique: infrared optical method
• Sampling mode: Sidestream or mainstream
• Measuring range: 0~150 mmHg
• Measuring accuracy:
- 0~40 mmHg ±2 mmHg
- 41~70 mmHg ±5% of reading
- 71~100 mmHg ±8% of reading
- 101~150 mmHg ±10% of reading
• Flow rate: 50 ml/min ±10 ml/min (Sidestream)

Other specifications
• Power supply: AC 100-240 V, 50/60 Hz, 60 VA
• Built-in lithium battery: 11.1V/4400 mah
• Display: 12 inch TFT display
• Alarming method: 3 levels audible-visible alarm
• Networking: Ethernet
• Safety standard: IEC 60601-1
Standard accessories
- Adult SpO2 probe
- NIBP adult cuff
- SpO2 extension cable
- ECG cable
- Skin temperature probe
- Power supply cable
- Re-chargeable lithium battery
- Dust-protective cover
- Disposable electrode
- Manual: GB, FR, IT, ES, PL, RU
