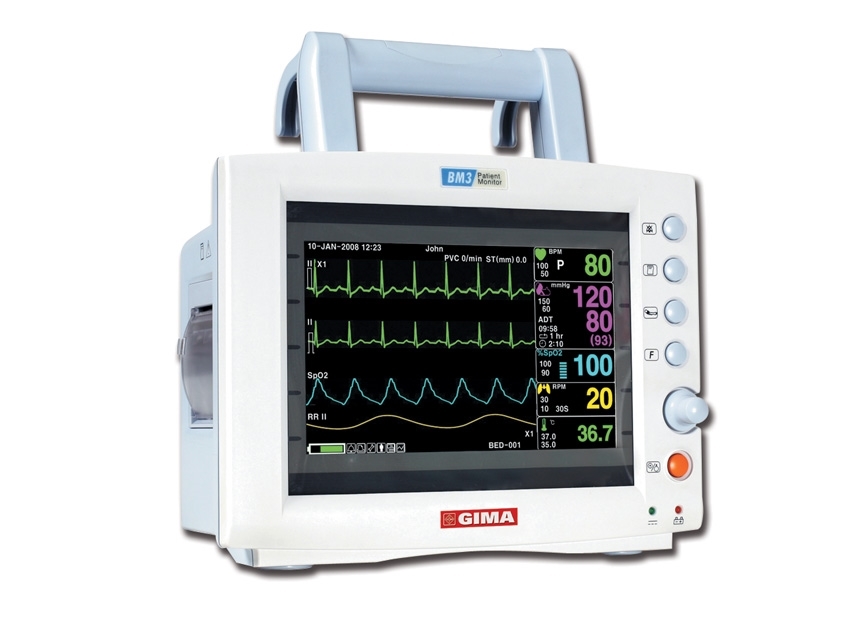

GIMA BM3 VET MULTIPARAMETER MONITOR, 1 pc.

Description

GIMA BM3 VET MONITOR - VETERINARY

GIMA monitors are configured with
- 7” colour TFT LCD for a clear view
- Individual sweep speed setting for each parameter
- 128 full hours trend data stored
- SpO2 measurement with very low perfusion detection and pulse beep
- 2 traces ECG
- screen freeze on/off
- connection to Central monitoring system using LAN or W-LAN
- Li-ion Battery (for 1.5 hours continous operation)
- High-performance ECG detection and analysis
• input impedance for dry skin or electrode patch
• ST level, PVC count real-time display
• 3 kinds of Arrhythmia analysis
• pacemaker detection function
- Enhanced data management
• graphical and tabular trends
• 20 cases per 10 sec alarm waveform stored, reviewed and printed
- Internal software selectable in GB, DE, FR, IT, PT, PL, RO, HU, ES, CZ, BG, RU, TR, CN
- User manual: GB, IT (on request: ES, FR, DE)
Technical Specifications
GENERAL
• Display: 7" colour TFT 800x480 pixels
• Dimensions: 238 x 250 x h 163 mm
• Weight: 3.1 kg
• Trace: 4 waveforms: 2*ECG, SpO2, Respiration, Sweep speed: 6.25, 12.5, 25, 50 mm/sec
• Indicators Categorized alarms (3 priority levels)
• Visual alarm, QRS beep & SpO2 Pulse beep, Percent (%) SpO2 pitch tone, Battery status, Enternal Power LED
• Thermal printer: 25, 50 mm/sec (paper width 58 mm)
• Battery: Rechargeable Li-ion battery
• Operating time: 1.5 hours (fully charged)
• Interfaces:
- lan digital output for transferring data
- DC input connector: 18 VDC, 2.5 A max
• Operating voltage: 100-240 V, 50-60 Hz
• Data storage: 128 hours trends, 20 cases of 10 sec alarm waveform

ECG
• Lead type: 3-lead, 5-lead (option)
• Lead selection:
- 3-lead I, II, III
- 5-lead I, II, III, aVR, aVL, aVF, V (option)
• Heart rate range:
- Adult: 30 to 300 bpm,
- Neonate/Pediatric: 30 to 350 bpm
• Heart rate accuracy: ± 1bpm or ± 1%, whichever is greater
• Sweep speed: 6.25, 12.5, 25, 50 mm/sec
• Filter:
- Diagnosis: 0.05 to 150 Hz
- Monitoring: 0.5 to 40 Hz
- Moderate: 0.5 to 25 Hz
- Maximum: 5 to 25 Hz
• S-T segment detection range: -2.0 to 2.0 mV
• Arrhythmia analysis: ASYSTOLE, VTACH, VFIB
• Pacemaker detection mode: Indicator on waveform display (user selectable)
• Protection: Against electrosurgical interference and defibrillation

SpO2
• % Saturation Range: 0% to 100% ± 2 digits (70% to 100%)
• Pulse rate range: 30 to 254 bpm ± 2 bpm

NIBP
• Technique: Oscillometric
• Measurement Modes: Manual/automatic/continuous
• Pressure range: 0 to 300 mmHg ±3 mmHg
• Measurement range:
- Adult pressure: 20 to 260 mmHg
- Pediatric pressure: 20 to 230 mmHg
- Neonatal pressure: 20 to 120 mmHg

Respirations
• Method: Thoracic impedance
• Range: 5 to 120 breath/min
• Accuracy: ± 1 breath/min
• Apnea alarm: yes

Temperature Unit
• Range: 0° to 50°C (32°F to 122°F)
• Accuracy: ± 0.1°C (25°C to 50°C), ± 0.2°C (0°C to 24°C)
• Compatible with: YSI Series 400 Temperature Probes
Standard accessories
• 3 lead patient cable (ECG) - vet
• Disposable electrodes: 10 pcs
• NIBP tubing 3 m
• Set of 3 veterinary cuff
• SpO2 sensor - reusable - vet
• SpO2 sensor extension cable 2 m
• DC adaptor (18 VDC, 2.5A)
• Thermal printer
• Rechargeable battery
• User manual (english, italian)
