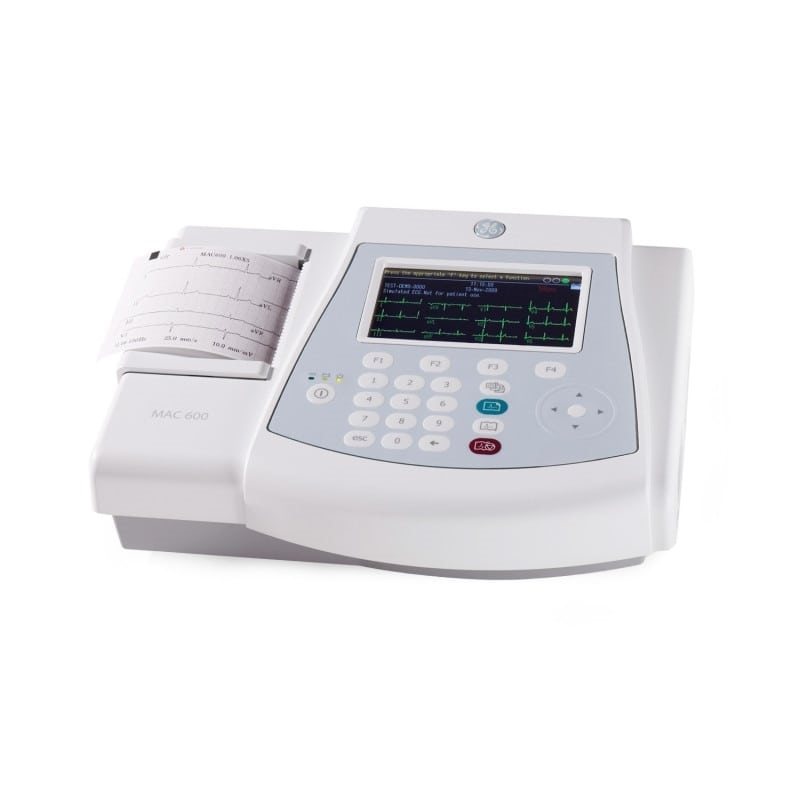

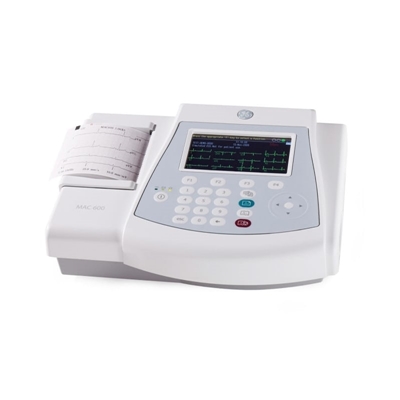

GE MAC 600 ECG System without external memory

Description

The GE MAC 600 ECG system for recording resting ECGs can be operated as a stationary or portable device. For this purpose, the resting ECG machine is equipped with a powerful integrated lithium battery with which up to 250 ECGs can be recorded on a single charge. The MAC 600 system is fully operational within only 7 seconds after turning it on; thus, saving valuable time and contributing to optimal procedures. Storage of the ECG data is not done on an internal disc, but on a separate SD card, which makes data transmission to the surgery PC particularly simple. The ECG system is available with or without external memory or SD card.

Your GE MAC 600 ECG machine will be delivered with the compatible analysis software, which allows for evaluation and analysis of ECG exams carried out on adults and children.

Product Details for the GE MAC 600

• ECG system for recording resting ECGs
• With 12 SL ECG evaluation and analysis software for children/adults

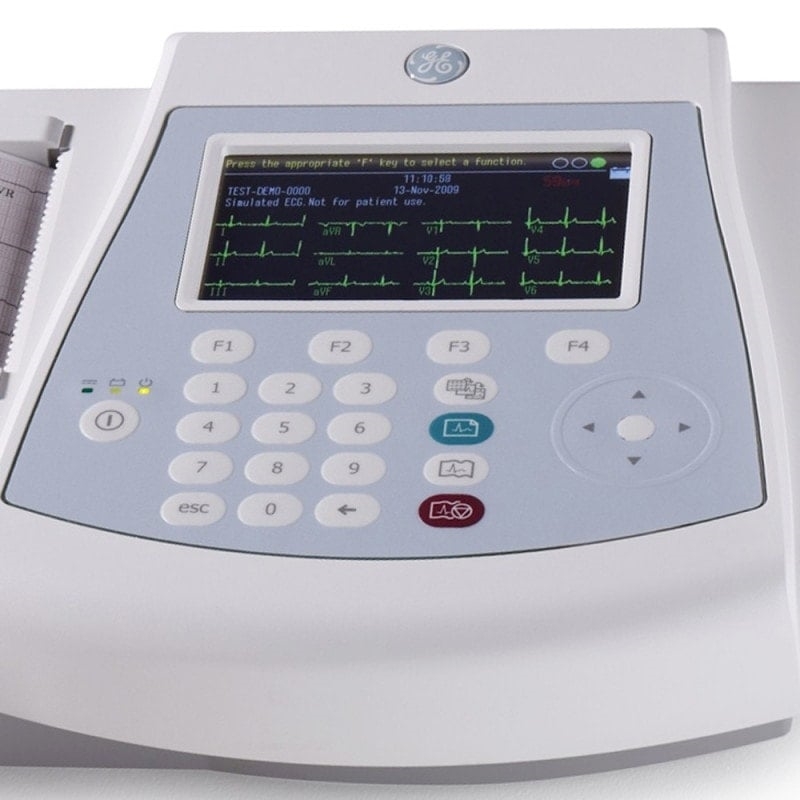

• With 4.3" colour display
• Intuitively operable keyboard
• One-touch operation
• 3-channel ECG can be printed from the integrated thermal printer
• Particularly easy to operate
• Displays all 12 channels (4 x 3)
• Operational within seconds (approx. 7 seconds after powering on)
• Heart rate measurement: 30 to 300 beats +/- 10%
• Automatic recording (10 seconds)
• Operable with rechargeable battery (up to 3 hours or 250 ECG exams with fully charged battery)
• If bought with external memory: ECGs can be saved as PDFs on an SD card in the integrated SD card slot
• Dimensions: 8.1 x 26.3 x 20.8 cm
• Weight: 1.2 kg (incl. battery)
• Manufacturer warranty: 1 year

Delivery Contents:

• GE MAC 600 resting ECG system with interpretation software

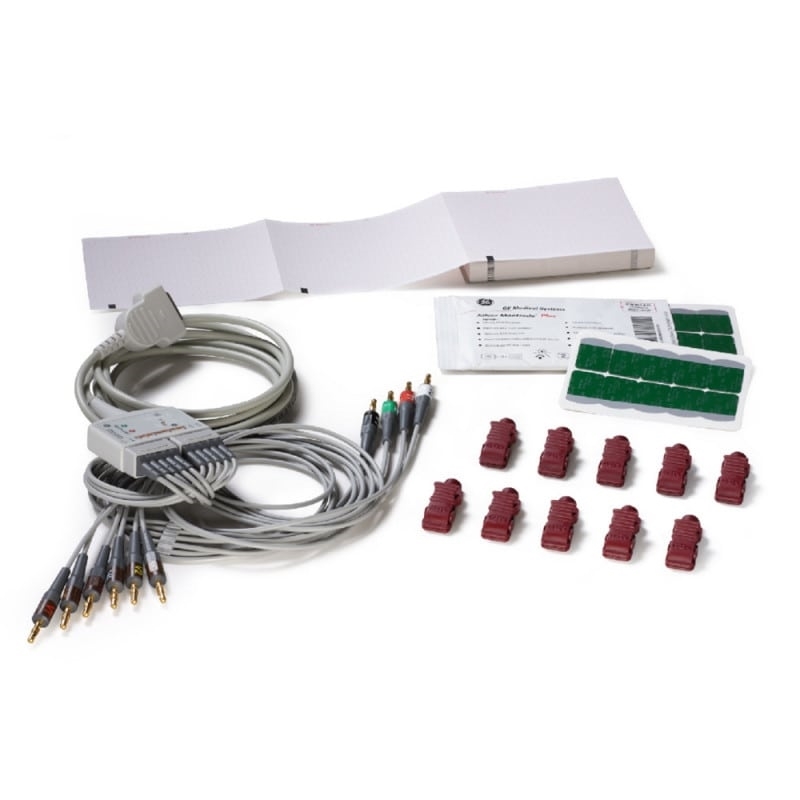

• IEC starter kit with multilink patient cable (banana plug), adapter for button electrodes and 100 adhesive electrodes
• Power cable
• Manual
• ECG paper
• Optional external memory with SD card
