CHISON ECO1 B&W ULTRASOUND - 1 probe connector, 1 pc.

Description

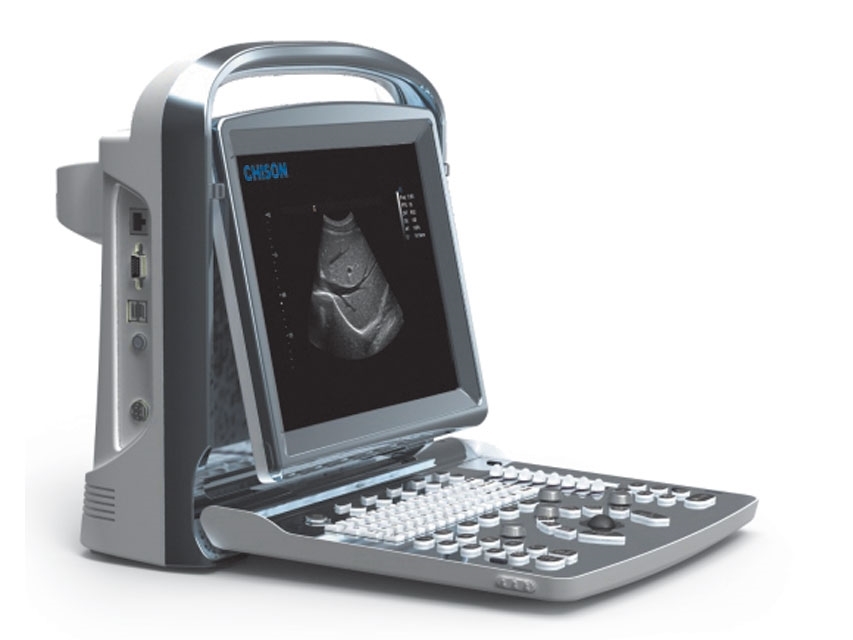

DIGITAL ULTRASOUND B&W DIAGNOSTIC IMAGING SYSTEM CHISON ECO1
WITH 1 PROBE CONNECTOR (probe not included).

Premium Design, Surpricing price.

- ultra-compact and ultra-light weight, easy to carry
- latest LED screen technology, super bright images allow to easily view scan even outdoor.
- ergonomic monitor design, 30 degree rotation, adjustable.
- ultra-long battery life up to 2.5 hours, for outdoor scanning
- one-key to enlarge image to full screen, easy to view from distance
- streamlined workflow, easy to operate, 6-one-key to finish the cycle of diagnosis.

Display modes and imaging processing:
B, B/B, 4B, M, B/M, multi-frequency imaging

Imaging processing:
- compound Imaging
- trapezoidal
- I-image intelligent image optimization
- THI (Tissue Harmonic Imaging)
- SRA (Speckle Reduction Algorithm)
- Chroma
- full digital beam-former
- AIO (Automatic Image Optimization)
- full screen display

User interface
- fold-up control panel and alphanumeric keyboard
- back-lit keyboard for good visibility in dark room
- interactive back-lighting
- indicator lights identify activated keys
- 8 TGC slides for easy adjustment
- short cut knob for quick adjustment (hot key user- defined)
- neat and clear keyboard layout, doctor can remember easily
- user defined preset

Streamlined workflow, one key to:
- select desired application with automatic preset
- optimize the image automatically (AIO)
- Make report
- save still image and CINE loop
- Measure
- print to PC printer (laser or inkjet) or video printer

EASYVIEW™ Archive system:
- image archive on hard disk and USB mobile storage medium
- 3 USB ports
- multiple image formats: BMP, JPG, DCM, CIN, avi
- cine review: auto, manual (auto review segment can be set) for 2D, M images
- cine memory capacity (256 frames/10s)

Available 2.5 hours rechargeable lithium-ion battery (OPTIONAL)
Technical Specifications
- Dimension: 33.5 x 15.5 x h 35 cm (13.2" x 6.1" x h 13.8")
- Weight: 6 kg
- Display: 12" LED, high resolution 1024 x 768
- Power: AC 100-240 V - 50/60 Hz
- Software (language switchable by user): GB, IT, FR, ES, DE, CZ, TR, CN, RU
- User manual: GB, IT, CN
Standard accessories
12” high resolution Black and White LED monitor
8G memory card
Hot Key
PC printer connection
3 USB port
1 ethernet port
1 video out port, 1 VGA out port
1 footswitch port
Full screen display
Power adaptor
Standard software package
Easy View image archive system
THI
