CARDIOGIMA 12 ECG - 3-6-12 channels, 1 pc.

Description

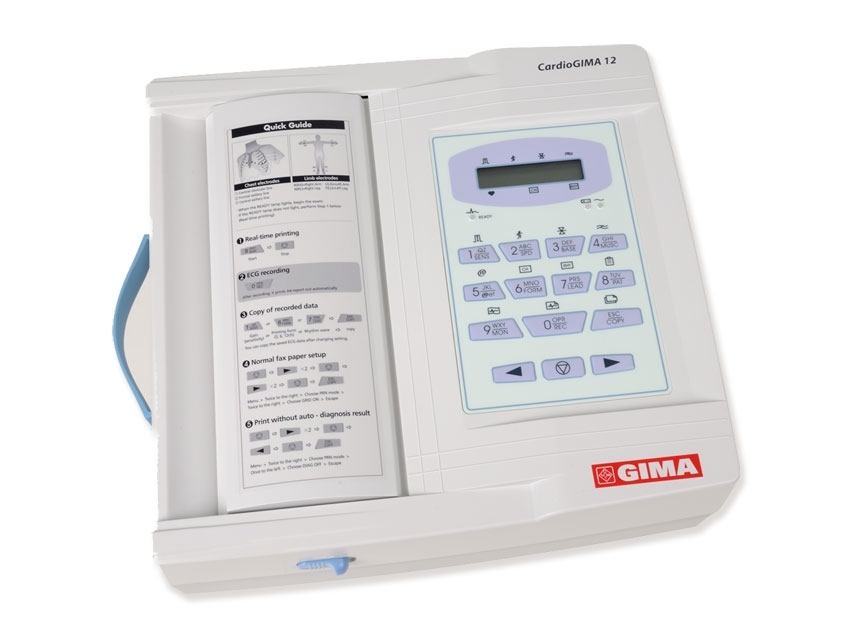

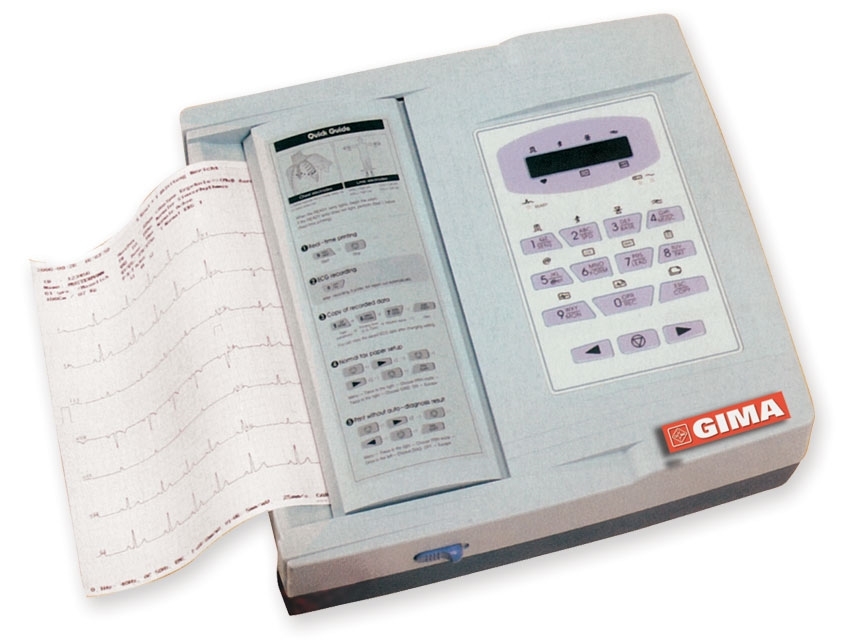

CARDIOGIMA 12 ECG - 3-6-12 channel

Cost effective 12 channel resting ECG recorder without performance compromise. The simultaneous record of 12 channels has a high diagnostic value - all the 12 channels are shown at the same time. A4 size paper, one body type.

Main Features:
- 12 leads simultaneous 10-second resting ECG with interpretation in only 60 seconds multilanguage. Internal software+print in GB, FR, IT, ES, DE, RU, TR, PL, PT, RO, KR.
- wide paper printing (A4 size thermal paper, fax paper is OK)
- combined output of all relevant curves, patient data, date, time and instrument settings

PC Connections: connection to PC with RS 232 port or LAN to submit recorded ECG signal to other specialist for evaluation (only a modem is needed)

ECG filing system: a fully configured PC-based software enables to record, print, change the settings of ECG’s and save them in JPG format, which ensure compatibility with most EMR package.

Rechargeable batteries (optional) with 1 hour capacity in normal use (about 100 ECG printouts).
Technical Specifications
• ECG Leads: 3-6-12 channel illustration of ECG signals in continuous recording or 10 sec. recording with interpretation.
• Dimension: 296 x 305.5 x 92.5 mm
• Approx 3 kg
• Recording channel: 3, 6, 12 channel and 1 channel (60 sec.)
• Sensitivity: 5, 10, 20, auto (I~aVF: 10, W1~V6: 5) mm/mV
• Printing speed: 12,5; 25; 50 mm/s
• Filters:
- AC (50/60 Hz, -20 dB or better)
- Muscle (25~35 Hz, -3 dB or better)
- Low pass filter (off, 40 Hz, 100 Hz, 150 Hz)
• Display: 2x16 character LCD display
• LCD display: Sensitivity, speed filter status, HR, Printing form, rythm lead
• LED indicator: Signal quality, power source, battery
• Keyboard: Membrane keyboard, alphanumeric and symbol available
• Patient data: ID, name, age, sex, height, weight
• Basic measurement: Heart rate, PR, QRS, QT/QTc, P-R-T axis
• Recorder: Thermal print head, thermal paper roll
- Report papers: width: A4: 210 mm or 8.5", lenght A4: 3 00 mm or 11"
• Resolution: vertical: 8 dots/mm, horizontal: 16 dots/mm
• Electrical:
- Internal noise: 20µV (p-p) max
- Input circuit: floating input
- Isolated and defibrillation protected
- DC offset voltage: = ± 500 mV
- Patient leakage current: < 10µA
- Frequency response 0,05~150 Hz
• Power:
- Power supply: AC or built-in battery (options)
- Power requirement: 100-240 Vac, 50/60 Hz, 1.0-0.5 A
- Power consumption: 60 W max
• Battery capacity: 1 hour of normal use (approx. 100 automatic ECG printouts)

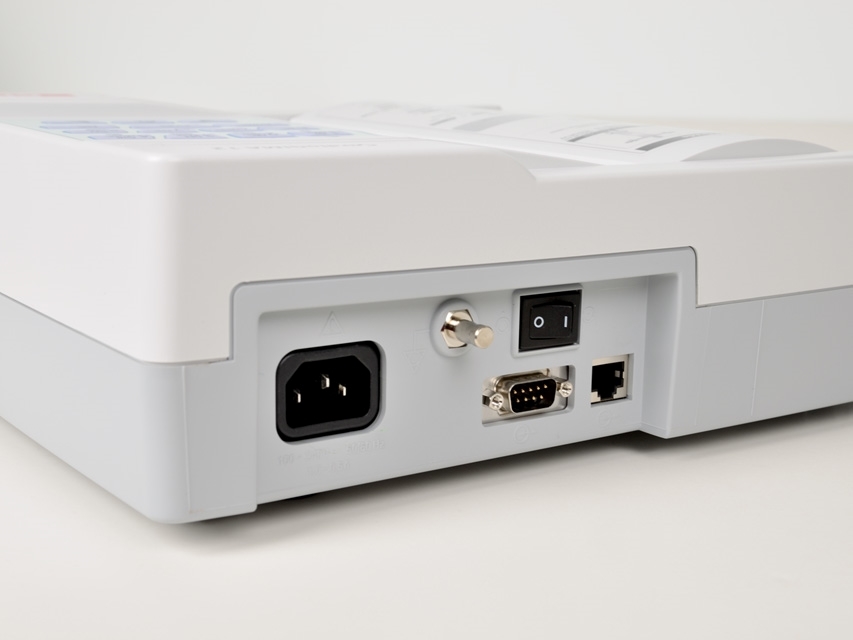

• Communication: PC Connection with RS-232 interface and lan
• Safety: Class I, Type BF
• Conformity: CE, FDA, KFDA, CFDA, NCC
• Made in Korea
Standard accessories
• 1 PC software (GB, FR, IT, ES, PT, DE, PL, RO, BG, HU, TR, RU, KR)
• 1 LAN cable

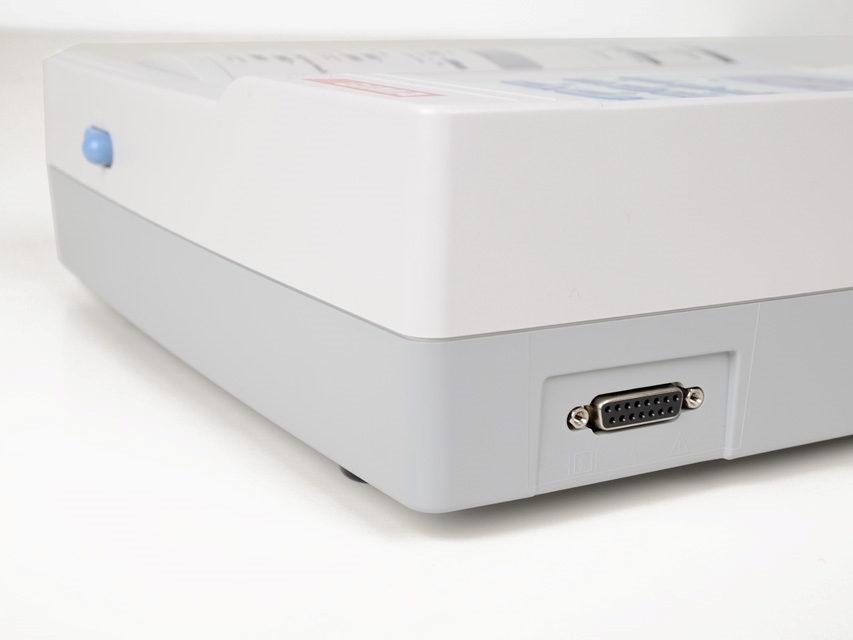

• 1 Patient cable - 10 leads
• 4 ECG clip-on electrodes
• 6 Chest electrodes, suction for adult
• 1 ECG electrode cream (70 g)
• 1 Power cable
• 1 Recording paper rolls
• 1 Operation manual (english, italian)
