BM WIRE CENTRAL SYSTEM (up to 31 monitors), 1 pc.

Description

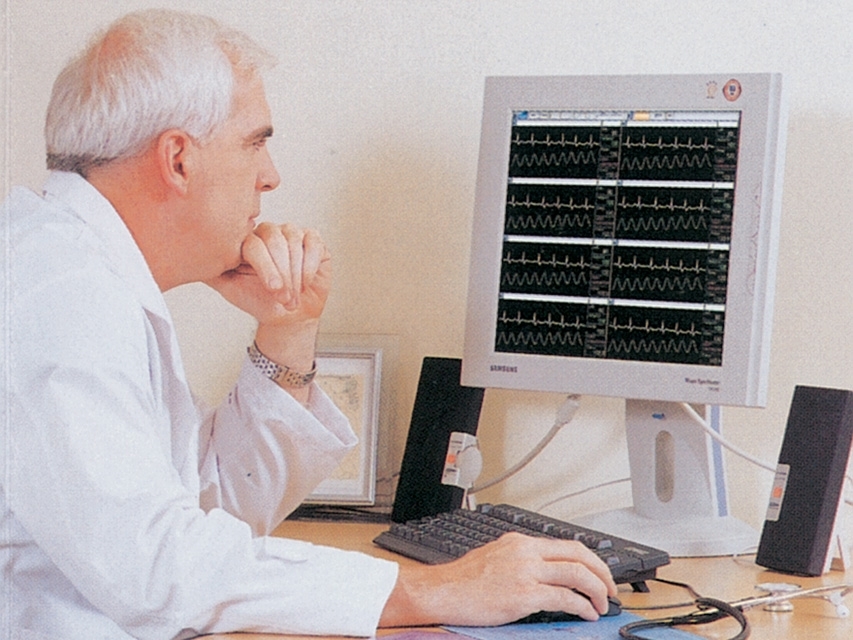

PATIENT CENTRAL SYSTEM (up to 31 monitors)

It allows the user to monitor and extract the exact status of several patients simultaneously at a place.

Convenient bidirectional communication allows you to admit new patient information, set alarms at either central station or patient monitor.
Technical Specifications
GENERAL:
• Display: 7" colour TFT 800x480 pixels
• Dimensions - Weight: 238x250xh 163 mm - 3.1 kg
• Trace:
- 4 waveforms: 2*ECG, Spo2, Respiration
- Sweep speed: 6.25, 12.5, 25, 50 mm/sec
• Indicators: Categorized alarms (3 priority levels), Visual alarm, QRS beep & Spo2 Pulse beep, Percent (%) Spo2 pitch tone, Battery status, Enternal Power LEd
• Thermal printer: 25, 50 mm/sec (paper width 58 mm)
• Battery: Rechargeable Li-ion battery. Operating time: 1.5 hours (fully charged)
• Interfaces: LaN digital output for transferring data dC input connector: 18 VdC, 2.5 a max
• Operating voltage: 100-240 V, 50-60 Hz
• Data storage: 128 hours trends, 20 cases of 10 sec alarm waveform

ECG:
• Lead type: 3-lead, 5-lead (option)
• Lead selection:
- 3-lead i, ii, iii
- 5-lead i, ii, iii, aVR, aVL, aVF, V (option)
• Heart rate range:
- Adult: 30 to 300 bpm
- Neonate/Pediatric: 30 to 350 bpm
• Heart rate accuracy: ± 1bpm or ± 1%, whichever is greater
• Sweep speed: 6.25, 12.5, 25, 50 mm/sec
• Filter:
- Diagnosis: 0.05 to 150 Hz
- Monitoring: 0.5 to 40 Hz
- Moderate: 0.5 to 25 Hz
- Maximum: 5 to 25 Hz
• S-T segment detection range: -2.0 to 2.0 mV
• Arrhythmia analysis: aSYSToLE, VTaCH, VFiB
• Pacemaker detection mode: indicator on waveform display (user selectable)
• Protection: against electrosurgical interference and defibrillation

spo2:
• % Saturation Range: 0% to 100% ± 2 digits (70% to 100%)
• Pulse rate range: 30 to 254 bpm ± 2 bpm

NIBP:
• Technique: oscillometric
• Measurement Modes: Manual/automatic/continuous
• Pressure range: 0 to 300 mmHg ±3 mmHg
• Measurement range:
- Adult pressure: 20 to 260 mmHg
- Pediatric pressure: 20 to 230 mmHg
- Neonatal pressure: 20 to 120 mmHg

RESPIRATION:
• Method: Thoracic impedance
• Range: 5 to 120 breath/min
• Accuracy: ± 1 breath/min
• Apnea alarm: yes

Temperature unit:
• Range: 0° to 50°C (32°F to 122°F)
• Accuracy: ± 0.1°C (25°C to 50°C), ± 0.2°C (0°C to 24°C)
• Compatible with: YSi Series 400 Temperature Probes
